Wood Based Panels Machinery Woodworking Machinery

MY07C Automatic Wood PVC Edge Banding Machine CE Certified Plywood Production New Bearings Gears Motors DW702 Scraping Gluing

Products Description Automatic MY07C Veneer Splicing Wood PVC Edge Banding Machine CE Certificate Plywood Production New Bearings Gears Motors DW702DW702 High speed automatic edge banding machine is suitable for medium density fiber board. blockboard. wood panels. particleboard. plywood and other polymer doors.straight edge trimming. disposable with double-sided adhesive tape cutting edge bonding edge pressing. block. […]

Key Highlights

Performance

High-Precision Output

Certification

CE & ISO9001

Customization

OEM / ODM Ready

Export

Worldwide Shipping

Request a Quote WhatsApp

woodmachinebc@aliyun.com +86 156 6441 3539

Products Description

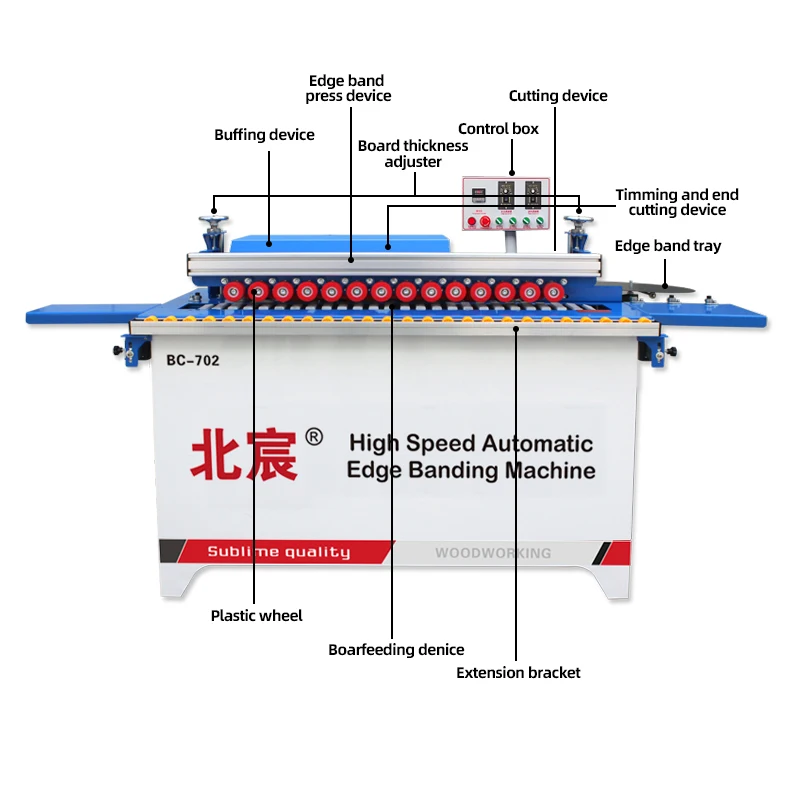

Automatic MY07C Veneer Splicing Wood PVC Edge Banding Machine CE Certificate Plywood Production New Bearings Gears Motors DW702

DW702 High speed automatic edge banding machine is suitable for medium density fiber board. blockboard. wood panels. particleboard. plywood and other polymer doors.
straight edge trimming. disposable with double-sided adhesive tape cutting edge bonding edge pressing. block. chamfer. Tinker.
finishing. polishing and other functions . edge smooth. smooth. feel good sealing wire. flat and smooth. The
equipment operation is stable. reliable and durable. is especially suitable for large and medium-sized furniture. cabinets and
1. High quality electrical component and high power.big glue pot. 2. MINI.all in one function.Product serialization and
diversification is easy for the
customer to choose.
3. High precision and work efficiency.easy operate
4. Automatic and precise gluing procedure as well as integrated doublefinish.
5. High strength frame structure. durable
6. Glue evenly. conveying stability

Product Paramenters

Model	DW702
Total power	3800W
Standard features	Edge banding. trimming. polishing. automatic head and tail. with vacuum	Voltage	220V/380V/customization
Minimum length of sheet	25CM	Minimum width of sheet	10CM
Edge banding height	0-50MM	Edge banding thickness	0.3-3MM
Edge power/speed	20W	Air source pressure	0.4-0.8Mpa
Transmission power/speed	140W	Glue pot capacity	1000ml
Trimming power/speed	800W*2	Vacuum power	1200W
Polishing power/speed	180W*2
Product Size	12055110CM	Product weight	105KG

Why Choose Us

Our company is a source enterprise specializing in the production and exportof woodworking machinery products. The main products are edge bandingmachine. slotting machine. woodworking saw table and other auxiliary products.Our products are widely sold in China and exported to Europe. North America.Southeast Asia. Russia and other countries and regions. and are wellreceived by customers.

FAQ

Q1.Are you a trade company or a manufacturer ?We are manufacturer in Dezhou city. Shandong province of China.

We can offer competitive price of machine with high quality.Q2:Can I choose the Plug?Yes.we have EU.USA.AU.UK plug for your country useQ3:Is it OK to print my logo on the product?Yes.Please inform us formally before our production and confirm the design firstly for the mass production.Q4.I do not know Chinese.will the operation panel in English or French or other?Yes.all our machine are with Chinese and English.If you want only English or Spanish or other.we also can customize to youQ5:It is my first time to purchase goods from china.how do i do? Do not worry.Bei chen has 10 years export experience to all over the world.also has professional sales team.We have exported to Russia. Pakistan. Algeria. Vietnam. Peru and many other countries.Q6:How to pack the machine? We use wooden box to packge the machine to protect them to be safe.Q7.What to do if l have any other specifications for the current?lf you have any different requirements.just contact us and we will meet you.Q8.lf I need a sample for pretest. do you sale sample for this inquiry ?Yes. we can sale sample for pretest. lf you need this service. please contact us and we will giveyou a quotation.Q9.Can you produce the products according to my own drawings?Yes. we can do OEM according to your requirement

Standard specifications are listed below. Custom configurations are available -- contact us for tailored solutions.

Parameter	Value
Product Name	MY07C Automatic Wood PVC Edge Banding Machine CE Certified Plywood Production New Bearings Gears Motors DW702 Scraping Gluing
Category	Wood Based Panels Machinery, Woodworking Machinery
Certification	CE, ISO9001
Voltage	220V/380V (Customizable)
Warranty	1 Year
After-Sales	Remote technical support, spare parts supply
OEM/ODM	Available -- logo, color, voltage, language
Delivery	Standard export packaging, worldwide shipping
MOQ	1 Unit
Lead Time	15-30 days (subject to order)

* Specifications may vary by model. Contact our team for exact technical data sheets.

Product Features

High-precision machining with ±0.1mm tolerance
Durable components for long service life
User-friendly operation panel
Low noise, energy-efficient motor
Quick blade/part change design
Safety guard and emergency stop
Smooth conveyor belt system
Stable performance under continuous operation

OEM / ODM Service

Custom logo & brand labeling
Voltage configuration (220V/380V/440V)
Multilingual control panels (EN/ES/FR/AR)
Color & appearance customization
Custom packaging & export crating
Private label / white-label service
Technical documentation in your language
Dedicated account manager support
