Furniture Portable Kdt Edge Bander Machine Buffing Trimmer Gluing MDF Automatic Pvc Edge Banding Machine Price Woodworking
Wood Based Panels Machinery
CE Certified
Furniture Portable Kdt Edge Bander Machine Buffing Trimmer Gluing MDF Automatic Pvc Edge Banding Machine Price Woodworking thumbnail
Furniture Portable Kdt Edge Bander Machine Buffing Trimmer Gluing MDF Automatic Pvc Edge Banding Machine Price Woodworking view 2
Furniture Portable Kdt Edge Bander Machine Buffing Trimmer Gluing MDF Automatic Pvc Edge Banding Machine Price Woodworking view 3
Furniture Portable Kdt Edge Bander Machine Buffing Trimmer Gluing MDF Automatic Pvc Edge Banding Machine Price Woodworking view 4
CE & ISO9001
100+ Countries
Full After-Sales
Wood Based Panels Machinery Woodworking Machinery

Furniture Portable Kdt Edge Bander Machine Buffing Trimmer Gluing MDF Automatic Pvc Edge Banding Machine Price Woodworking

Product Description ZDS802 Automatic Edge Banding Machine (Large Glue Pot) ZDS802 high-speed automatic edge banding machine has the function of automatic head and tail. and comes with a vacuum cleaner. The machine is clean and tidy. The integrated pressure beam. double row pressure roller. and silicone material conveyor belt make the board stable and solid […]

Key Highlights

Performance
High-Precision Output
Certification
CE & ISO9001
Customization
OEM / ODM Ready
Export
Worldwide Shipping
Request a Quote WhatsApp
woodmachinebc@aliyun.com +86 156 6441 3539
Product Description

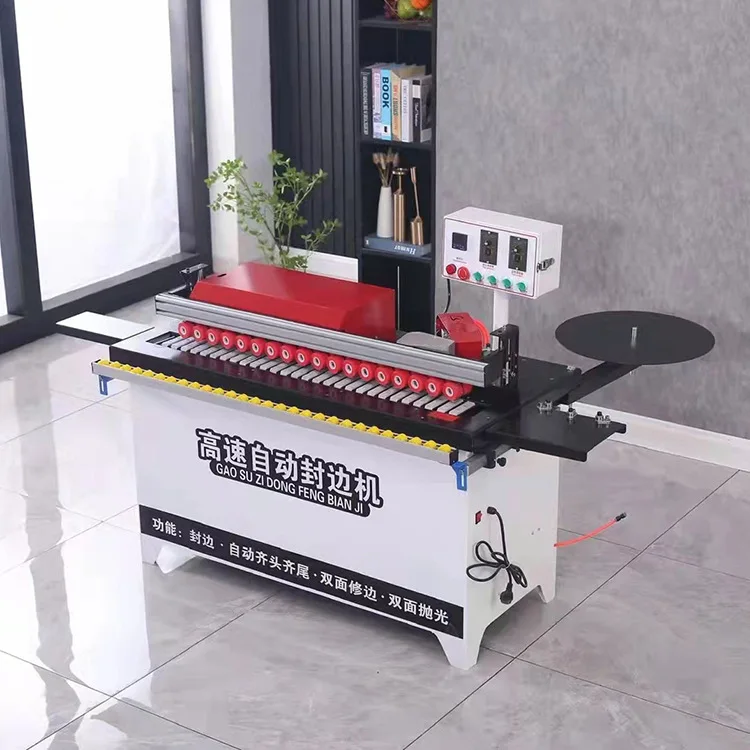

ZDS802 Automatic Edge Banding Machine (Large Glue Pot)
ZDS802 high-speed automatic edge banding machine has the function of automatic head and tail. and comes with a vacuum cleaner. The machine is clean and tidy.
The integrated pressure beam. double row pressure roller. and silicone material conveyor belt make the board stable and solid and not easy to scratch the board.
4L large-capacity glue pot does not need to add glue frequently. saves time and effort. can band multiple plates continuously. and is easy to operate.
Edge banding speed is about 2 times of that of others models.
Banding Effect
Features: 1. Automatic board feeding 2. Double-sided gluing 3. Up and down trimming and polishing 4. Automatic end trimming 5. Big Capacity of Glue Pot
Specification
Model
ZDSF802 Automatic Edge Banding Machine
Function
automatic plate feeding. end cutting. upper and lower polishing. automatic head and tail trimming. comes with dust collector
Edge type
straight line
Rated voltage
220v
Strip thickness
0.5-2.5mm
Sheet thickness
10-50mm
Trimming power
800w*2
Polishing power
180w*2
Suction power
1200w
Rated power
4kw
Rated air pressure
0.4-0.6mpa
Feed plate
0-10m/min
Conveyer belt
0-10m/min
Glue capacity
4000ml
Heating power
1000w (5-10min)
Overall size
130*65*75cm
Machine weight
150kg
Details Images

Control panel. digital display of glue pot temperature. independent switch. easy to operate.

Integrated pressure beam. double rows of pressure wheels. silicone material conveyor belt.

4000ml Large-capacity glue pot reduces the number of glue additions and improves efficiency.

Pneumatically controlled belt breaking method is precise and labor-saving.

Extendable fluent strips. more stable and convenient when sealing large plates.
Double high-speed trimming motors. trimming up and down. the trimming effect is beautiful.
Up and down two polishing motors.
the polishing effect is better.
Edge banding tray
Recommend Products
Packing & Delivery
Company Profile

ABOUT US

Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a CNC machinery company in Lunjiao. Foshan
City.
Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. CNC nesting machine. CNC wood router. CNC six-sided drilling and milling processing center. CNC side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries. In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.
FAQ
Q1: How to make an order?
A1:You can order online . Or Email us your details. and we will contact you immediately and help you
proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?
A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?
A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?
A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?
A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?
A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.

Standard specifications are listed below. Custom configurations are available -- contact us for tailored solutions.

Parameter Value
Product Name Furniture Portable Kdt Edge Bander Machine Buffing Trimmer Gluing MDF Automatic Pvc Edge Banding Machine Price Woodworking
Category Wood Based Panels Machinery, Woodworking Machinery
Certification CE, ISO9001
Voltage 220V/380V (Customizable)
Warranty 1 Year
After-Sales Remote technical support, spare parts supply
OEM/ODM Available -- logo, color, voltage, language
Delivery Standard export packaging, worldwide shipping
MOQ 1 Unit
Lead Time 15-30 days (subject to order)

* Specifications may vary by model. Contact our team for exact technical data sheets.

Product Features

  • High-precision machining with ±0.1mm tolerance
  • Durable components for long service life
  • User-friendly operation panel
  • Low noise, energy-efficient motor
  • Quick blade/part change design
  • Safety guard and emergency stop
  • Smooth conveyor belt system
  • Stable performance under continuous operation
