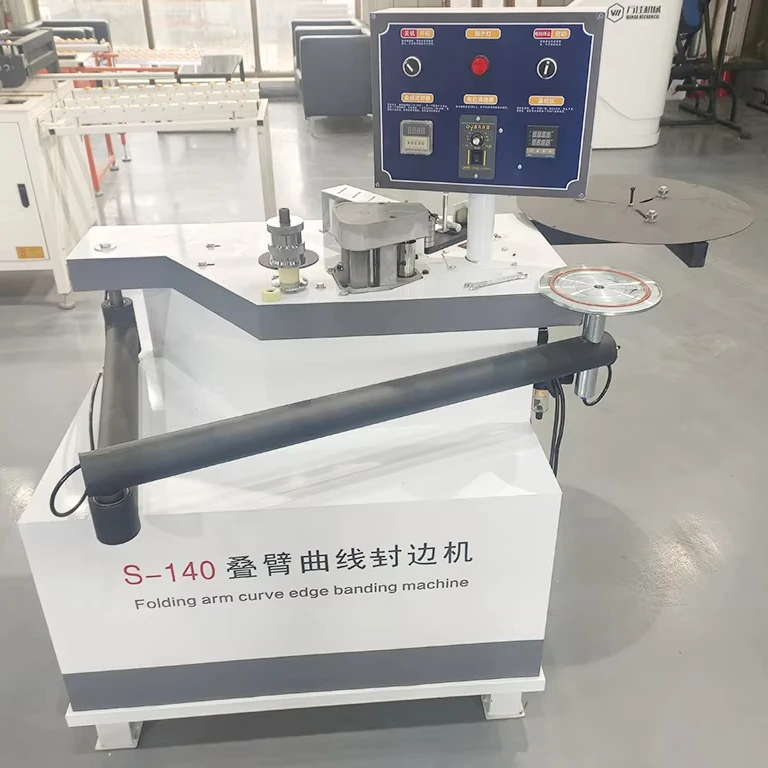

S-140 Folding Arm Curve Edge Banding Machine Edge Sealing Board Home Improvement Woodworking Edge Bander

Wood Based Panels Machinery

CE Certified

CE & ISO9001

100+ Countries

Full After-Sales

Wood Based Panels Machinery Woodworking Machinery

S-140 Folding Arm Curve Edge Banding Machine Edge Sealing Board Home Improvement Woodworking Edge Bander

Products Disply Curve edge banding machine features:1.Double-sided gluing2.Straight and curved dual purpose 3. Arm folding device 4. Automatic belt break 5. Pure copper motor 6. Strong suction cup 7.One-shot molding The folding arm arc edge banding machine solves the problem of edge banding of panel furniture. study tables. office furniture. etc. Application: panel furniture. customized […]

Key Highlights

Performance

High-Precision Output

Certification

CE & ISO9001

Customization

OEM / ODM Ready

Export

Worldwide Shipping

Request a Quote WhatsApp

woodmachinebc@aliyun.com +86 156 6441 3539

Products Disply

Curve edge banding machine features:

1.Double-sided gluing
2.Straight and curved dual purpose

3. Arm folding device

4. Automatic belt break

5. Pure copper motor

6. Strong suction cup

7.One-shot molding

The folding arm arc edge banding machine solves the problem of edge banding of panel furniture. study tables. office furniture. etc. Application: panel furniture. customized furniture. cabinet wardrobe. office furniture. tables and chairs. doors and windows. wood products. decoration industry. etc.

Functional display

Product details

Control Panel1 Intelligent temperature control2 Speed adjustment3 Timer for curve edge banding

Increase the size of the glue pot. reduce the number of glue additions. and improve efficiency.

Edge banding wheelAdjust according to the width of the edge strip +0.5mm to prevent the edge strip from shifting.

Hot air deviceBottom-up hot air heating improves the adhesion between the edge banding strip and the board.

strong suction cupFirmly absorb the board to prevent it from falling off.

Automatic belt breaking device controlled by double cylinders

Product Parameters

Model	S-140	W-2	W-3
Voltage	220V	220V50Hz	220V50Hz
Total power	1.4kw	1.4kw	3.4kw
Air source air pressure	0.5-0.8Mpa	0.5-0.8Mpa	0.5-0.8Mpa
Edge banding speed	0-180mm/s	0-180mm/s	0-180mm/s
Overall size	966288CM	12008001220mm	12101100970mm
Machine size	10565120CM
weight	88kg	152kg	152kg
Standard suction cup	200*26mm	300*26mm	300*26mm
Edge band thickness	0.4-2mm	0.4-2mm	0.4-2mm
Edge band width	8-50mm	8-50mm	8-50mm
Breaking method	Automatic tape break
Glue pot capacity	1000ml

Company Profile

_{ABOUT US}

Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a C N C machinery company in Lunjiao. Foshan City.Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. C N C nesting machine. C N C wood router. C N C six-sided drilling and milling processing center. C N C side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries.In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.

Package And Shipping

FAQ

Q1: How to make an order?

A1:You can order online . Or Email us your details. and we will contact you immediately and help you proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?

A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?

A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?

A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?

A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?

A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.

Standard specifications are listed below. Custom configurations are available -- contact us for tailored solutions.

Parameter	Value
Product Name	S-140 Folding Arm Curve Edge Banding Machine Edge Sealing Board Home Improvement Woodworking Edge Bander
Category	Wood Based Panels Machinery, Woodworking Machinery
Certification	CE, ISO9001
Voltage	220V/380V (Customizable)
Warranty	1 Year
After-Sales	Remote technical support, spare parts supply
OEM/ODM	Available -- logo, color, voltage, language
Delivery	Standard export packaging, worldwide shipping
MOQ	1 Unit
Lead Time	15-30 days (subject to order)

* Specifications may vary by model. Contact our team for exact technical data sheets.

Product Features

High-precision machining with ±0.1mm tolerance
Durable components for long service life
User-friendly operation panel
Low noise, energy-efficient motor
Quick blade/part change design
Safety guard and emergency stop
Smooth conveyor belt system
Stable performance under continuous operation

OEM / ODM Service

Custom logo & brand labeling
Voltage configuration (220V/380V/440V)
Multilingual control panels (EN/ES/FR/AR)
Color & appearance customization
Custom packaging & export crating
Private label / white-label service
Technical documentation in your language
Dedicated account manager support
