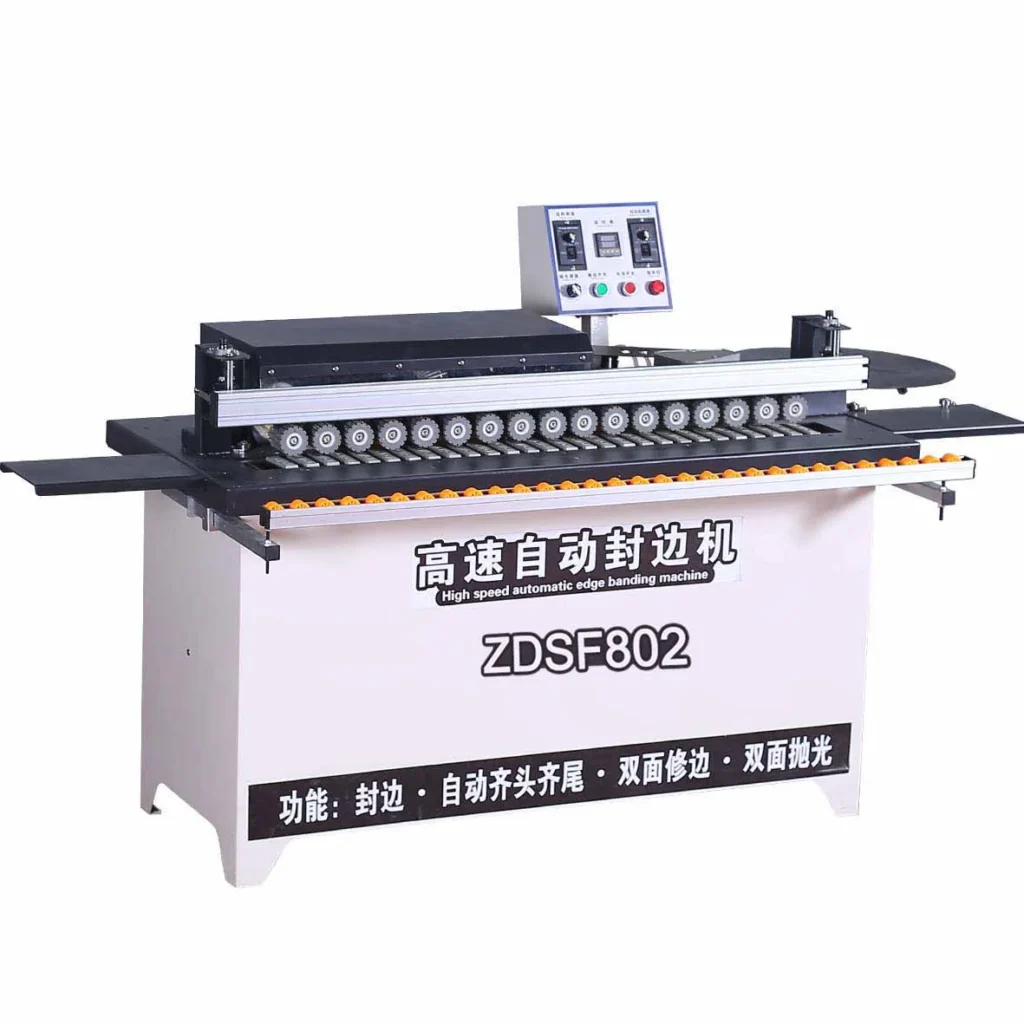

Automatic Pvc Mdf Cabinet Edge Banding Machine Automatic Edge Bander Machine Woodworking Machine
Wood Based Panels Machinery
CE Certified
Automatic Pvc Mdf Cabinet Edge Banding Machine Automatic Edge Bander Machine Woodworking Machine thumbnail
Automatic Pvc Mdf Cabinet Edge Banding Machine Automatic Edge Bander Machine Woodworking Machine view 2
Automatic Pvc Mdf Cabinet Edge Banding Machine Automatic Edge Bander Machine Woodworking Machine view 3
Automatic Pvc Mdf Cabinet Edge Banding Machine Automatic Edge Bander Machine Woodworking Machine view 4
CE & ISO9001
100+ Countries
Full After-Sales
Wood Based Panels Machinery Woodworking Machinery

Automatic Pvc Mdf Cabinet Edge Banding Machine Automatic Edge Bander Machine Woodworking Machine

Products Disply The high-speed automatic edge banding machine has the function of automatic end cutting. with its own vacuum device. clean and tidy.One-piece pressure beam. double rows of pressure wheels. silicone material conveyor belt. the sheet conveying is stable and not easy to scratch.It can seal multiple plates continuously. with convenient operation and high efficiency. […]

Key Highlights

Performance
High-Precision Output
Certification
CE & ISO9001
Customization
OEM / ODM Ready
Export
Worldwide Shipping
Request a Quote WhatsApp
woodmachinebc@aliyun.com +86 156 6441 3539
Products Disply
The high-speed automatic edge banding machine has the function of automatic end cutting. with its own vacuum device. clean and tidy.One-piece pressure beam. double rows of pressure wheels. silicone material conveyor belt. the sheet conveying is stable and not easy to scratch.It can seal multiple plates continuously. with convenient operation and high efficiency.
Product Parameters
Name
high speed automatic edge banding machine
Model
F802
Function
automatic plate feeding. end cutting. upper and lower polishing. automatic head and tail trimming. comes with dust collector
Edge type
straight line
Rated voltage
220v
Rated power
4kw
Rated air pressure
0.4-0.6mpa
Strip thickness
0.5-2.5mm
Sheet thickness
10-50mm
Feed plate
0-10m/min
Conveyer belt
0-10m/min
Glue capacity
4000ml
Heating power
1000w (5-10min)
Trimming power
800w*2
Polishing power
180w*2
Suction power
1200w
Overall size
130*65*75cm
Machine weight
150kg
Product details
Control panel. digital display of glue pot temperature. independent switch. easy to operate.
Integrated pressure beam. double rows of pressure wheels. silicone material conveyor belt.
4000ml Large-capacity glue pot reduces the number of glue additions and improves efficiency.
702 model glue pot is 1000ml.
Pneumatically controlled belt breaking method is precise and labor-saving.
Extendable fluent strips. more stable and convenient when sealing large plates.
Double high-speed trimming motors. trimming up and down. the trimming effect is beautiful.
Up and down two polishing motors. the polishing effect is better.
edge banding tray.
Company Profile
ABOUT US
Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a C N C machinery company in Lunjiao. Foshan City.Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. C N C nesting machine. C N C wood router. C N C six-sided drilling and milling processing center. C N C side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries.In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.
Package And Shipping
FAQ
Q1: How to make an order?
A1:You can order online . Or Email us your details. and we will contact you immediately and help you proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?
A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?
A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?
A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?
A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?
A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.

Standard specifications are listed below. Custom configurations are available -- contact us for tailored solutions.

Parameter Value
Product Name Automatic Pvc Mdf Cabinet Edge Banding Machine Automatic Edge Bander Machine Woodworking Machine
Category Wood Based Panels Machinery, Woodworking Machinery
Certification CE, ISO9001
Voltage 220V/380V (Customizable)
Warranty 1 Year
After-Sales Remote technical support, spare parts supply
OEM/ODM Available -- logo, color, voltage, language
Delivery Standard export packaging, worldwide shipping
MOQ 1 Unit
Lead Time 15-30 days (subject to order)

* Specifications may vary by model. Contact our team for exact technical data sheets.

Product Features

  • High-precision machining with ±0.1mm tolerance
  • Durable components for long service life
  • User-friendly operation panel
  • Low noise, energy-efficient motor
  • Quick blade/part change design
  • Safety guard and emergency stop
  • Smooth conveyor belt system
  • Stable performance under continuous operation

OEM / ODM Service

  • Custom logo & brand labeling
  • Voltage configuration (220V/380V/440V)
  • Multilingual control panels (EN/ES/FR/AR)
  • Color & appearance customization
  • Custom packaging & export crating
  • Private label / white-label service
  • Technical documentation in your language
  • Dedicated account manager support
