ZDS802 Multifunctional MDF Board Portable Automatic Pvc Furniture Woodworking Edge Banding Machine With Trimmer

Wood Based Panels Machinery

CE Certified

CE & ISO9001

100+ Countries

Full After-Sales

Wood Based Panels Machinery Woodworking Machinery

ZDS802 Multifunctional MDF Board Portable Automatic Pvc Furniture Woodworking Edge Banding Machine With Trimmer

Product Description ZDS802 Automatic Edge Banding Machine (Large Glue Pot) ZDS802 high-speed automatic edge banding machine has the function of automatic head and tail. and comes with a vacuum cleaner. The machine is clean and tidy. The integrated pressure beam. double row pressure roller. and silicone material conveyor belt make the board stable and solid […]

Key Highlights

Performance

High-Precision Output

Certification

CE & ISO9001

Customization

OEM / ODM Ready

Export

Worldwide Shipping

Request a Quote WhatsApp

woodmachinebc@aliyun.com +86 156 6441 3539

Product Description

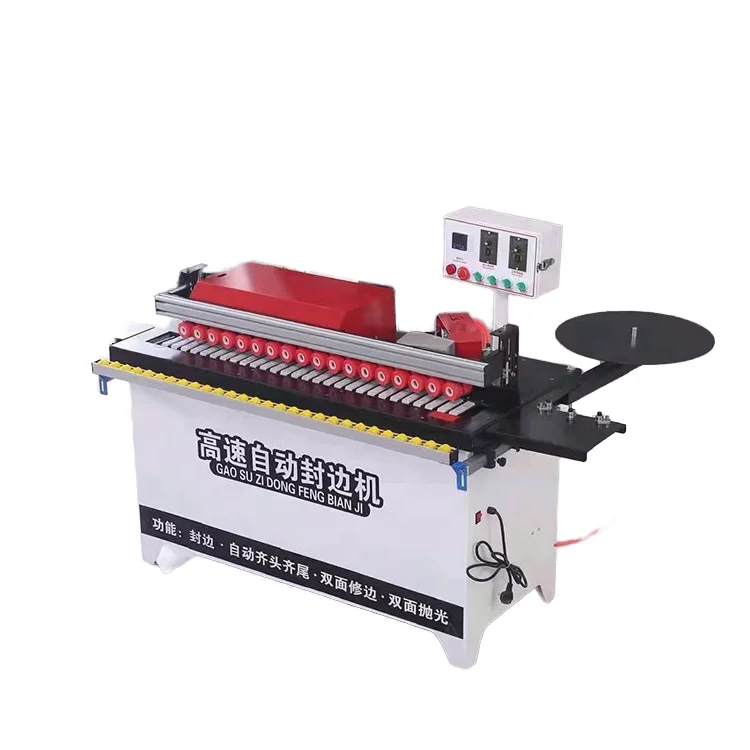

ZDS802 Automatic Edge Banding Machine (Large Glue Pot)

ZDS802 high-speed automatic edge banding machine has the function of automatic head and tail. and comes with a vacuum cleaner. The machine is clean and tidy.

The integrated pressure beam. double row pressure roller. and silicone material conveyor belt make the board stable and solid and not easy to scratch the board.

4L large-capacity glue pot does not need to add glue frequently. saves time and effort. can band multiple plates continuously. and is easy to operate.

Edge banding speed is about 2 times of that of others models.

Banding Effect

Features: 1. Automatic board feeding 2. Double-sided gluing 3. Up and down trimming and polishing 4. Automatic end trimming 5. Big Capacity of Glue Pot

Specification

Model	ZDS802 Automatic Edge Banding Machine
Function	automatic plate feeding. end cutting. upper and lower polishing. automatic head and tail trimming. comes with dust collector
Edge type	straight line
Rated voltage	220v
Strip thickness	0.5-2.5mm
Sheet thickness	10-50mm
Trimming power	800w*2
Polishing power	180w*2
Suction power	1200w
Rated power	4kw
Rated air pressure	0.4-0.6mpa
Feed plate	0-10m/min
Conveyer belt	0-10m/min
Glue capacity	4000ml
Heating power	1000w (5-10min)
Overall size	1306575cm
Machine weight	150kg

Details Images

Control panel. digital display of glue pot temperature. independent switch. easy to operate.

Integrated pressure beam. double rows of pressure wheels. silicone material conveyor belt.

4000ml Large-capacity glue pot reduces the number of glue additions and improves efficiency.

Pneumatically controlled belt breaking method is precise and labor-saving.

Extendable fluent strips. more stable and convenient when sealing large plates.

Double high-speed trimming motors. trimming up and down. the trimming effect is beautiful.

Up and down two polishing motors.

the polishing effect is better.

Edge banding tray

Recommend Products

Packing & Delivery

Company Profile

ABOUT US

Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a CNC machinery company in Lunjiao. Foshan

City.

Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. CNC nesting machine. CNC wood router. CNC six-sided drilling and milling processing center. CNC side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries. In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.

FAQ

Q1: How to make an order?

A1:You can order online . Or Email us your details. and we will contact you immediately and help you
proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?
A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?
A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?
A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?
A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?
A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.

Standard specifications are listed below. Custom configurations are available -- contact us for tailored solutions.

Parameter	Value
Product Name	ZDS802 Multifunctional MDF Board Portable Automatic Pvc Furniture Woodworking Edge Banding Machine With Trimmer
Category	Wood Based Panels Machinery, Woodworking Machinery
Certification	CE, ISO9001
Voltage	220V/380V (Customizable)
Warranty	1 Year
After-Sales	Remote technical support, spare parts supply
OEM/ODM	Available -- logo, color, voltage, language
Delivery	Standard export packaging, worldwide shipping
MOQ	1 Unit
Lead Time	15-30 days (subject to order)

* Specifications may vary by model. Contact our team for exact technical data sheets.

Product Features

High-precision machining with ±0.1mm tolerance
Durable components for long service life
User-friendly operation panel
Low noise, energy-efficient motor
Quick blade/part change design
Safety guard and emergency stop
Smooth conveyor belt system
Stable performance under continuous operation
