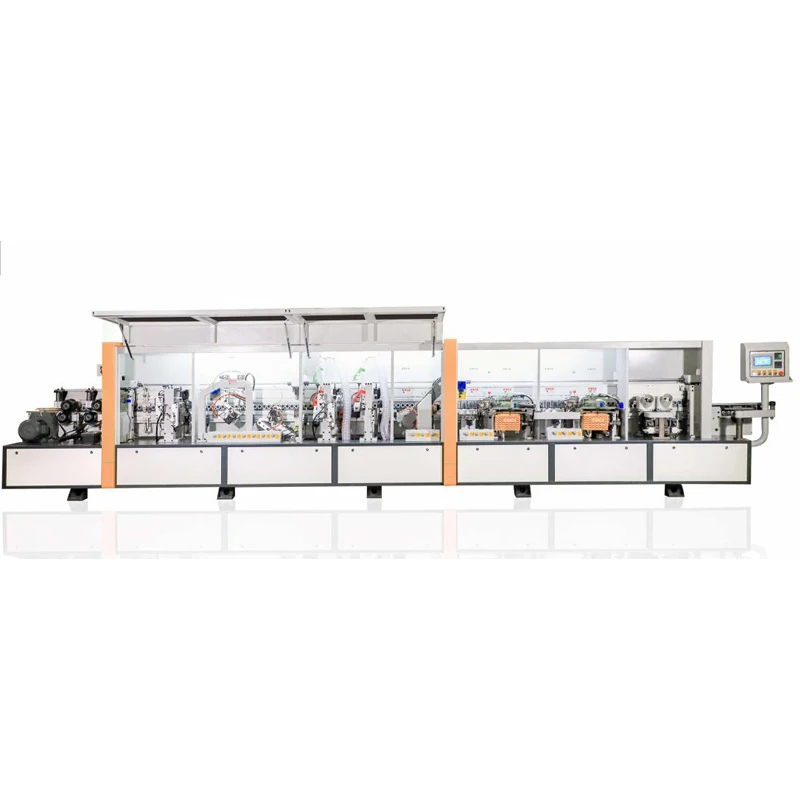

Wood Furniture Machine Mdf Pvc Abs Pre Milling Corner Rounding Kdt Automatic Edge Banding Machine With Buffing
Wood Based Panels Machinery
CE Certified
Wood Furniture Machine Mdf Pvc Abs Pre Milling Corner Rounding Kdt Automatic Edge Banding Machine With Buffing thumbnail
Wood Furniture Machine Mdf Pvc Abs Pre Milling Corner Rounding Kdt Automatic Edge Banding Machine With Buffing view 2
Wood Furniture Machine Mdf Pvc Abs Pre Milling Corner Rounding Kdt Automatic Edge Banding Machine With Buffing view 3
Wood Furniture Machine Mdf Pvc Abs Pre Milling Corner Rounding Kdt Automatic Edge Banding Machine With Buffing view 4
CE & ISO9001
100+ Countries
Full After-Sales
Wood Based Panels Machinery Woodworking Machinery

Wood Furniture Machine Mdf Pvc Abs Pre Milling Corner Rounding Kdt Automatic Edge Banding Machine With Buffing

Products Disply Product Parameters The main functionZDS365ZDS-368ZDS-468ZDS-468JZDS-468JJPre-milling√√Gluing 1√√√√√Gluing 2√End trimming√√√√√Rough Trimming√√√√Fine trimming√√√√√Corner rounding√√√Scraping√√√√√Buffing 1√√√√√Buffing 2√Min.Panel300*60mm300*60mm300*60mm/150*150mm300*60mm/150*150mm300*60mm/150*150mmTotal Power8.15KW9.65Kw13Kw16Kw18.5KwDimensions4070*900*1600mm4570*900*1600mm5800*900*1600mm6600*900*1600mm8000*900*1600mmWeight1200kg1400kg1600kg2000kg2300kgWorking pressure0.6Mpa0.6Mpa0.6Mpa0.6Mpa0.6MpaPanel Thickness10-60mm10-60mm10-60mm10-60mm10-60mmEdge Thickness0.4-3mm0.4-3mm0.4-3mm0.4-3mm0.4-3mmVoltage3-HP-380V3-HP-380V3-HP-380V3-HP-380V3-HP-380V our servicesWe can provide you with various custom services Details Images PLC control systemExcellent integrated control system. clear at a glance. easy to operate. and easy to learnGluingIt adopts Teflon spraying process and scientific glue back design. […]

Key Highlights

Performance
High-Precision Output
Certification
CE & ISO9001
Customization
OEM / ODM Ready
Export
Worldwide Shipping
Request a Quote WhatsApp
woodmachinebc@aliyun.com +86 156 6441 3539
Products Disply
Product Parameters
The main function
ZDS365
ZDS-368
ZDS-468
ZDS-468J
ZDS-468JJ
Pre-milling



√
√
Gluing 1
√
√
√
√
√
Gluing 2




√
End trimming
√
√
√
√
√
Rough Trimming

√
√
√
√
Fine trimming
√
√
√
√
√
Corner rounding


√
√
√
Scraping
√
√
√
√
√
Buffing 1
√
√
√
√
√
Buffing 2




√
Min.Panel
300*60mm
300*60mm
300*60mm/150*150mm
300*60mm/150*150mm
300*60mm/150*150mm
Total Power
8.15KW
9.65Kw
13Kw
16Kw
18.5Kw
Dimensions
4070*900*1600mm
4570*900*1600mm
5800*900*1600mm
6600*900*1600mm
8000*900*1600mm
Weight
1200kg
1400kg
1600kg
2000kg
2300kg
Working pressure
0.6Mpa
0.6Mpa
0.6Mpa
0.6Mpa
0.6Mpa
Panel Thickness
10-60mm
10-60mm
10-60mm
10-60mm
10-60mm
Edge Thickness
0.4-3mm
0.4-3mm
0.4-3mm
0.4-3mm
0.4-3mm
Voltage
3-HP-380V
3-HP-380V
3-HP-380V
3-HP-380V
3-HP-380V
 our services
We can provide you with various custom services
Details Images
PLC control system
Excellent integrated control system. clear at a glance. easy to operate. and easy to learn
Gluing
It adopts Teflon spraying process and scientific glue back design. It can make the temperature of the glue in the glue pot uniform without carbonization. and maintain good fluidity.
It can be upgraded to an upper glue pot and a PUR glue pot.

Pressing roller

4 sets of pressing roller wheels to tightly bond the edge banding strip and the plate
Optional 6 sets of pressing roller wheels.

End trimming unit with two high frequency motors

0.37 KW*2 .12000 rpm
Rough trimming system
2 high frequency motors for upper and lower edge with 0.75 KW (1 HP); 12000 rpm.
With 2pcs 6 teeth flat cutters.
Edge belt thickness change by manual
Fine trimming system2 high frequency motor for upper and lower edge with 0.75 KW (1 HP); 12000 rpm.
With 2pcs 6 teeth R2 cutters.
Edge belt thickness change by manual.
Edge scrapingEdge scraping mechanism ·Remove knife marks left by trimming and finish R rounded corners ·Electro-pneumatically controlled blowing
Buffing unit
Upper and lower buffing unit make the edge of the board after edge banding smoother.
Optional features

Pre-milling

Premilling unit with diamond cutters. 12000 rpm. 2x2.2 kW (3 HP). max. depth of cut 2 mm. max. workpiece height 60 mm. premilling
cutters with diamond cutters width 65mm; ensures right angled and chip free workpiece edges.

Corner rounding

Four-motor profiling. tracking and trimming ·High-precision profiling. to ensure the perfect tactile and visual effects of work
piece processing ·Can achieve 4 different profiling effects. as well as diamond corners.

Quick Sol Unit

With the upper melt system and the dual pre-melt system. the replacement is simple and convenient. The glue box is close to the pre-melt and the glue quantity control is more accurate.

Two Gluepots

Double glue pot. which can use different colors of glue to facilitate edge sealing operations of different colors.
Optional PUR device.
Glue pot optional up or down.

Flexible edge scraping

scrape the wave marks on the edge banding tape. more steadily.

Narrow plate auxiliary device

Narrow plate edge sealing is more stable and won't deviate.

Slotting device

Grooves are made on the finished edge banding plate as needed. forming in one step to improve efficiency.

Double Buffing unit

Upper and lower buffing unit ensures a perfect finish on the edge radius and removes any colour irregularities.

About Optional Features

Edge banding machines can have different functional combinations (Pre-milling. Gluing. End trimming. Rough trimming. Fine trimming. Profiling unit . Scraping . Buffing . Grooving. Drilling). According to your needs. in addition to the basic functions. we have multiple models with combined functions. If you need other features or want to remove some features. you can contact us and we can recommend the appropriate model to you.
