Wood Based Panels Machinery Woodworking Machinery

Wood Based Panels Machinery Gluing Mdf Pvc Edge Banding Machine Manual Double Trimming Edge Bander

Products Disply Model 368A Automatic Edge Banding Machine This edge banding machine can automatically finish gluing. fine trimming. polishing. etc. The woodworking edge banding machine is mainly used for edge banding of linear furniture such as learning desks. wardrobes. and cabinets. The material of the edge banding is mainly pvc.veneer .can banding 4cm width board […]

Key Highlights

Performance

High-Precision Output

Certification

CE & ISO9001

Customization

OEM / ODM Ready

Export

Worldwide Shipping

Request a Quote WhatsApp

woodmachinebc@aliyun.com +86 156 6441 3539

Products Disply

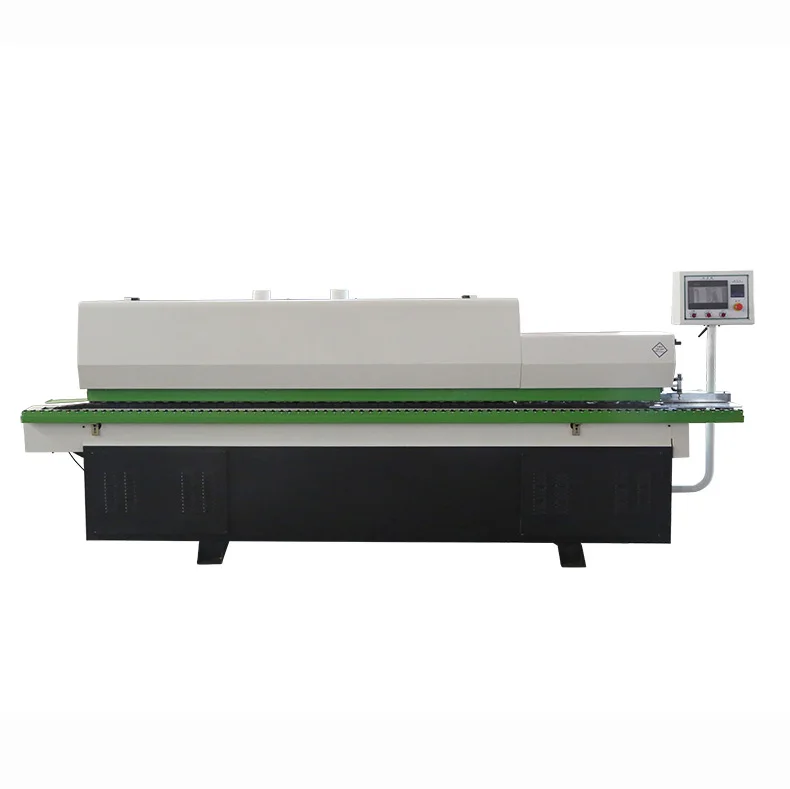

Model 368A Automatic Edge Banding Machine

This edge banding machine can automatically finish gluing. fine trimming. polishing. etc. The woodworking edge banding machine is mainly used for edge banding of linear furniture such as learning desks. wardrobes. and cabinets. The material of the edge banding is mainly pvc.veneer .can banding 4cm width board

Gluing ➠End cutting ➠Rough trimming ??Fine trimming ➠Scraping ➠Buffing

Configuration.

*Air Passage system: Taiwan AirTAC brand cylinder and safety valve

*Electrical appliances and operating systems??SPAN>Delixi/Chint: air switch. contactor. Japanese Omron travel switch.

*Inverter??Switzerland JORAL

*Touch screen: Taiwan Delta PLC control system

Product Parameters

Model	ZDS368A automatic edge banding machine
The main function	Gluing. End trimming. Rough trimming. Fine trimming. Scraping. Buffing
Working pressure	0.6-0.8Mpa
Panel thickness	10-55mm
Edge thickness	0.3-3.5mm
Conveyor belt speed	18m/min
Min. panel width	40mm
Min. panel length	60mm
Voltage	380V-3HP
Power	8.5kw
Weight	1500kg
Dimensions	*420010001500mm*

Product details

Control Panel

Gluing and pressing device

End trimming

Rough trimming & Fine trimming

Scraping & Buffing

Circuit system

Company Profile

_{ABOUT US}

Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a C N C machinery company in Lunjiao. Foshan City.Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. C N C nesting machine. C N C wood router. C N C six-sided drilling and milling processing center. C N C side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries.In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.

Package And Shipping

FAQ

Q1: How to make an order?

A1:You can order online . Or Email us your details. and we will contact you immediately and help you proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?

A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?

A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?

A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?

A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?

A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.

Standard specifications are listed below. Custom configurations are available -- contact us for tailored solutions.

Parameter	Value
Product Name	Wood Based Panels Machinery Gluing Mdf Pvc Edge Banding Machine Manual Double Trimming Edge Bander
Category	Wood Based Panels Machinery, Woodworking Machinery
Certification	CE, ISO9001
Voltage	220V/380V (Customizable)
Warranty	1 Year
After-Sales	Remote technical support, spare parts supply
OEM/ODM	Available -- logo, color, voltage, language
Delivery	Standard export packaging, worldwide shipping
MOQ	1 Unit
Lead Time	15-30 days (subject to order)

* Specifications may vary by model. Contact our team for exact technical data sheets.

Product Features

High-precision machining with ±0.1mm tolerance
Durable components for long service life
User-friendly operation panel
Low noise, energy-efficient motor
Quick blade/part change design
Safety guard and emergency stop
Smooth conveyor belt system
Stable performance under continuous operation

OEM / ODM Service

Custom logo & brand labeling
Voltage configuration (220V/380V/440V)
Multilingual control panels (EN/ES/FR/AR)
Color & appearance customization
Custom packaging & export crating
Private label / white-label service
Technical documentation in your language
Dedicated account manager support
