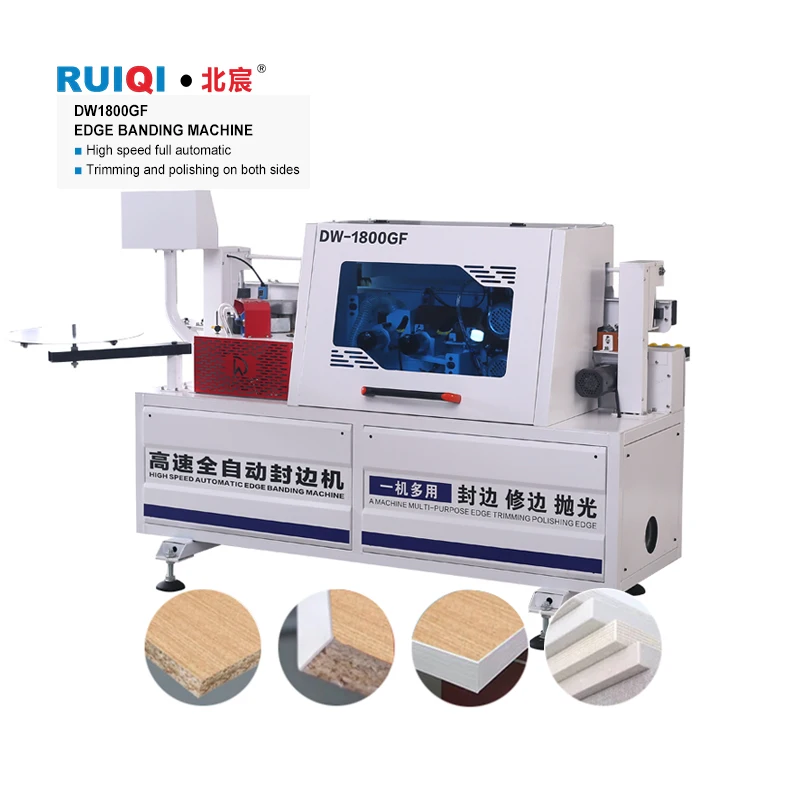

PVC Straight Automatic Edge Banding Machine Edge Bander Machine for Furniture

Wood Based Panels Machinery

CE Certified

CE & ISO9001

100+ Countries

Full After-Sales

Wood Based Panels Machinery Woodworking Machinery

PVC Straight Automatic Edge Banding Machine Edge Bander Machine for Furniture

Products Description PVC Straight Automatic Edge Banding Machine Edge bander Machine for FurnitureDW1800 automatic edge banding machine advantages?? Adopt imported motor and high quality electrical component. High precision and work efficiency. Automatic and precise gluing procedure as well as integrated double finish. Glue evenly. conveying stability. All the working area and specifications can be customized […]

Key Highlights

Performance

High-Precision Output

Certification

CE & ISO9001

Customization

OEM / ODM Ready

Export

Worldwide Shipping

Request a Quote WhatsApp

woodmachinebc@aliyun.com +86 156 6441 3539

Products Description

PVC Straight Automatic Edge Banding Machine Edge bander Machine for Furniture

DW1800 automatic edge banding machine advantages?? Adopt imported motor and high quality electrical component. High precision and work efficiency. Automatic and precise gluing procedure as well as integrated double finish. Glue evenly. conveying stability. All the working area and specifications can be customized according to your requests.1. It can achieve the gluing. end cutting. rough trimming. fine trimming. tracking. scraping and polishing functionsautomatically. 2.It applies glue in a stable and uniform way. 3. Profile tracking function rounds the four corners. making them more smooth and safer. 4. Automatic operation greatly improves edge banding efficiency and saves labor costs.5. Suitable for processing all kinds of MDF. particleboard. plywood. ABB boards. PVC panels. organic glass plates and solid wood and other wood structure. and hardness of a similar plate.6. Mobile table guide for the roll-ball differential structure. high positioning accuracy.7. Mobile workstations with high-strength extruded aluminum alloy. high strength. non-deformation.8. Mobile table surface oxidation treatment. beautiful and wearable.9. The main blade and a crossed angle of inclination from the precision instrument visual display.

Product Paramenters

Model	DW1800
Total power	4.9KW
Standard features	Double-sided gluing. top and bottom trimming. top and bottom polishing. front and rear alignment. flexible edge scraping. suck dust	Voltage	380V/220V/415V
Minimum length of sheet	20CM	Minimum width of sheet	10CM
Edge banding height	0-50MM	Edge banding thickness	0.3-3MM
Edge power/speed	160W 0-14M/min	Air source pressure	0.4-0.6Mpa
Transmission power/speed	180W 0-14M/min	Glue pot capacity	4000ml
Trimming power/speed	800W*2 24000r/min	Vacuum power	550W
Polishing power/speed	380W*2
Product Size	22065125CM	Product weight	320KG
Package Size	20784128CM(Heightened and widened bottom corners)

Why Choose Us

Our company is a source enterprise specializing in the production and exportof woodworking machinery products. The main products are edge bandingmachine. slotting machine. woodworking saw table and other auxiliary products.Our products are widely sold in China and exported to Europe. North America.Southeast Asia. Russia and other countries and regions. and are wellreceived by customers.

FAQ

Q1.Are you a trade company or a manufacturer ?We are manufacturer in Dezhou city. Shandong province of China.

We can offer competitive price of machine with high quality.Q2:Can I choose the Plug?Yes.we have EU.USA.AU.UK plug for your country useQ3:Is it OK to print my logo on the product?Yes.Please inform us formally before our production and confirm the design firstly for the mass production.Q4.I do not know Chinese.will the operation panel in English or French or other?Yes.all our machine are with Chinese and English.If you want only English or Spanish or other.we also can customize to youQ5:It is my first time to purchase goods from china.how do i do? Do not worry.Bei chen has 10 years export experience to all over the world.also has professional sales team.We have exported to Russia. Pakistan. Algeria. Vietnam. Peru and many other countries.Q6:How to pack the machine? We use wooden box to packge the machine to protect them to be safe.Q7.What to do if l have any other specifications for the current?lf you have any different requirements.just contact us and we will meet you.Q8.lf I need a sample for pretest. do you sale sample for this inquiry ?Yes. we can sale sample for pretest. lf you need this service. please contact us and we will giveyou a quotation.Q9.Can you produce the products according to my own drawings?Yes. we can do OEM according to your requirement

Standard specifications are listed below. Custom configurations are available -- contact us for tailored solutions.

Parameter	Value
Product Name	PVC Straight Automatic Edge Banding Machine Edge Bander Machine for Furniture
Category	Wood Based Panels Machinery, Woodworking Machinery
Certification	CE, ISO9001
Voltage	220V/380V (Customizable)
Warranty	1 Year
After-Sales	Remote technical support, spare parts supply
OEM/ODM	Available -- logo, color, voltage, language
Delivery	Standard export packaging, worldwide shipping
MOQ	1 Unit
Lead Time	15-30 days (subject to order)

* Specifications may vary by model. Contact our team for exact technical data sheets.

Product Features

High-precision machining with ±0.1mm tolerance
Durable components for long service life
User-friendly operation panel
Low noise, energy-efficient motor
Quick blade/part change design
Safety guard and emergency stop
Smooth conveyor belt system
Stable performance under continuous operation

OEM / ODM Service

Custom logo & brand labeling
Voltage configuration (220V/380V/440V)
Multilingual control panels (EN/ES/FR/AR)
Color & appearance customization
Custom packaging & export crating
Private label / white-label service
Technical documentation in your language
Dedicated account manager support

Full After-Sales Support Included

Remote technical guidance · Warranty coverage · Spare parts supply · Operation training · EN/ES service teams
