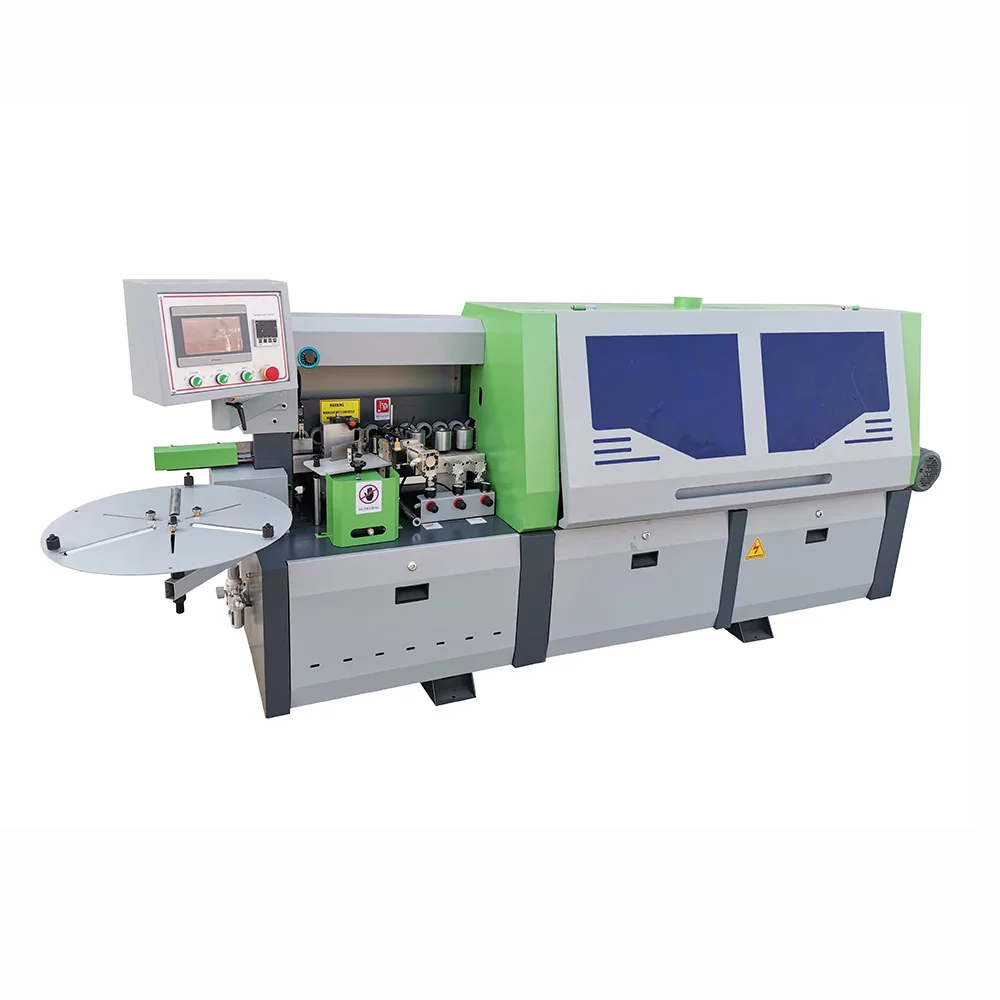

Pvc Mdf Edge Bander Automatic Line Edge Cutter Machines Pre Milling Wood Gluing Edge Banding Machine for Furniture Cabinets

Wood Based Panels Machinery

CE Certified

CE & ISO9001

100+ Countries

Full After-Sales

Wood Based Panels Machinery Woodworking Machinery

Pvc Mdf Edge Bander Automatic Line Edge Cutter Machines Pre Milling Wood Gluing Edge Banding Machine for Furniture Cabinets

Product Parameters ModelZDS280DThe main functionGluing. End trimming. Fine trimming. Scraping. BuffingWorking pressure0.6MpaPanel thickness10-60mmEdge thickness0.4-3mmConveyor belt speed16m/minMin. panel width60mmMin. panel length150mmVoltage380V-3HPPower7.5kwWeight700kgDimensions3100*700*1400mmOur ServiceWe can provide you with various custom services Products Disply 1. The machine body adopts 14mm national standard high-strength steel plate table. frame-type fuselage structure. which is durable and not easy to deform after high-temperature […]

Key Highlights

Performance

High-Precision Output

Certification

CE & ISO9001

Customization

OEM / ODM Ready

Export

Worldwide Shipping

Request a Quote WhatsApp

woodmachinebc@aliyun.com +86 156 6441 3539

Product Parameters

Model	ZDS280D
The main function	Gluing. End trimming. Fine trimming. Scraping. Buffing
Working pressure	0.6Mpa
Panel thickness	10-60mm
Edge thickness	0.4-3mm
Conveyor belt speed	16m/min
Min. panel width	60mm
Min. panel length	150mm
Voltage	380V-3HP
Power	7.5kw
Weight	700kg
Dimensions	31007001400mm
Our Service	We can provide you with various custom services

Products Disply

1. The machine body adopts 14mm national standard high-strength steel plate table. frame-type fuselage structure. which is durable and not easy to deform after high-temperature quenching treatment.2. The guide rail of the conveyor belt is made of HT260 material. and the conveying speed is stable.3. The conveying motor adopts a customized Taiwan brand. with stable power output. and the thermal protection system improves the safety factor.4. All high-speed motors are well-known and reliable brands. which are efficient and stable.5. The head guide rail adopts Taiwan brand. which is stable. durable and has high precision.6. Pneumatic system. German Festo or Taiwan AirTAC brand cylinder and safety valve. high-sensitivity AirTAC magnetic switch!7. Electrical appliances and operating systems: Delixi/Chint: air switches. contactors. Japanese Omron travel switches.

Product details

Control Panel

Gluing and pressing device

Fine trimming & Scraping & Buffing

End trimming

Company Profile

_{ABOUT US}

Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a C N C machinery company in Lunjiao. Foshan City.Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. C N C nesting machine. C N C wood router. C N C six-sided drilling and milling processing center. C N C side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries.In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.

Package And Shipping

FAQ

Q1: How to make an order?

A1:You can order online . Or Email us your details. and we will contact you immediately and help you proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?

A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?

A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?

A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?

A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?

A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.

Standard specifications are listed below. Custom configurations are available -- contact us for tailored solutions.

Parameter	Value
Product Name	Pvc Mdf Edge Bander Automatic Line Edge Cutter Machines Pre Milling Wood Gluing Edge Banding Machine for Furniture Cabinets
Category	Wood Based Panels Machinery, Woodworking Machinery
Certification	CE, ISO9001
Voltage	220V/380V (Customizable)
Warranty	1 Year
After-Sales	Remote technical support, spare parts supply
OEM/ODM	Available -- logo, color, voltage, language
Delivery	Standard export packaging, worldwide shipping
MOQ	1 Unit
Lead Time	15-30 days (subject to order)

* Specifications may vary by model. Contact our team for exact technical data sheets.

Product Features

High-precision machining with ±0.1mm tolerance
Durable components for long service life
User-friendly operation panel
Low noise, energy-efficient motor
Quick blade/part change design
Safety guard and emergency stop
Smooth conveyor belt system
Stable performance under continuous operation

OEM / ODM Service

Custom logo & brand labeling
Voltage configuration (220V/380V/440V)
Multilingual control panels (EN/ES/FR/AR)
Color & appearance customization
Custom packaging & export crating
Private label / white-label service
Technical documentation in your language
Dedicated account manager support

Full After-Sales Support Included

Remote technical guidance · Warranty coverage · Spare parts supply · Operation training · EN/ES service teams
