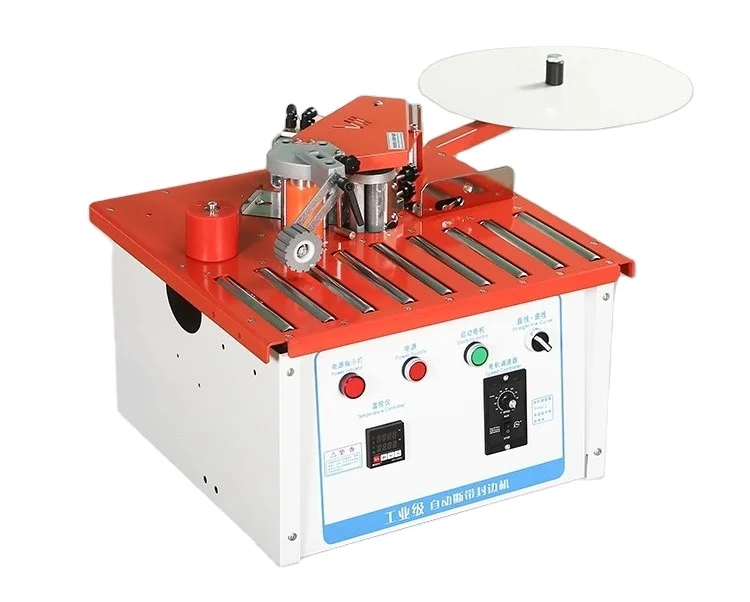

Portable Mini Curve Edge Bander Woodworking Mdf Edging Machine Pvc Edge Banding Machine

Other Woodworking Machinery

CE Certified

CE & ISO9001

100+ Countries

Full After-Sales

Other Woodworking Machinery Woodworking Machinery

Portable Mini Curve Edge Bander Woodworking Mdf Edging Machine Pvc Edge Banding Machine

Products Disply Product Parameters NameZDSF50+ Mini Edge Banding MachineRated voltage220vPower1.2KWFunctionlight. small and portable / automatic tape breaking / curve and straight line / double-sided gluingRated air pressure0.4-0.6mpaStrip thickness0.5-1.5mmSheet thickness10-60mmGlue capacity1000mlHeating Time5-10minEdge banding speed0-6m/minOverall size54x54x56cmMachine weight28kg Product details 1000ml glue pot. 4 heating tubes for heating. the sol speed is fast.Glue-coated rollers. double-sided glue. more firm […]

Key Highlights

Performance

High-Precision Output

Certification

CE & ISO9001

Customization

OEM / ODM Ready

Export

Worldwide Shipping

Request a Quote WhatsApp

woodmachinebc@aliyun.com +86 156 6441 3539

Products Disply

Product Parameters

Name	ZDSF50+ Mini Edge Banding Machine
Rated voltage	220v
Power	1.2KW
Function	light. small and portable / automatic tape breaking / curve and straight line / double-sided gluing
Rated air pressure	0.4-0.6mpa
Strip thickness	0.5-1.5mm
Sheet thickness	10-60mm
Glue capacity	1000ml
Heating Time	5-10min
Edge banding speed	0-6m/min
Overall size	54x54x56cm
Machine weight	28kg

Product details

1000ml glue pot. 4 heating tubes for heating. the sol speed is fast.

Glue-coated rollers. double-sided glue. more firm edge sealing.

Adjustable pressure rollers can be adjusted according to the thickness of the board. making edge banding easier.

Edge strip transport bayonet can be adjusted according to the height of edge strip.

Pneumatically controlled belt breaking device. easy to operate.

Foot switch makes it easier to break the tape when sealing the curve.

Equipped with a travel switch. it can automatically break the belt when sealing the edge in a straight line.

The pressing roller made of rubber makes the edge banding firmer.

Company Profile

_{ABOUT US}

Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a C N C machinery company in Lunjiao. Foshan City.Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. C N C nesting machine. C N C wood router. C N C six-sided drilling and milling processing center. C N C side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries.In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.

Package And Shipping

FAQ

Q1: How to make an order?

A1:You can order online . Or Email us your details. and we will contact you immediately and help you proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?

A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?

A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?

A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?

A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?

A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.

Standard specifications are listed below. Custom configurations are available -- contact us for tailored solutions.

Parameter	Value
Product Name	Portable Mini Curve Edge Bander Woodworking Mdf Edging Machine Pvc Edge Banding Machine
Category	Other Woodworking Machinery, Woodworking Machinery
Certification	CE, ISO9001
Voltage	220V/380V (Customizable)
Warranty	1 Year
After-Sales	Remote technical support, spare parts supply
OEM/ODM	Available -- logo, color, voltage, language
Delivery	Standard export packaging, worldwide shipping
MOQ	1 Unit
Lead Time	15-30 days (subject to order)

* Specifications may vary by model. Contact our team for exact technical data sheets.

Product Features

High-precision machining with ±0.1mm tolerance
Durable components for long service life
User-friendly operation panel
Low noise, energy-efficient motor
Quick blade/part change design
Safety guard and emergency stop
Smooth conveyor belt system
Stable performance under continuous operation

OEM / ODM Service

Custom logo & brand labeling
Voltage configuration (220V/380V/440V)
Multilingual control panels (EN/ES/FR/AR)
Color & appearance customization
Custom packaging & export crating
Private label / white-label service
Technical documentation in your language
Dedicated account manager support

Full After-Sales Support Included

Remote technical guidance · Warranty coverage · Spare parts supply · Operation training · EN/ES service teams
