Multifunctional PVC Edge Banding Machine 45 Degree Oblique Straight Manual MDF Board Making Box Gluing Based Panels Scrape Clean

Wood Based Panels Machinery

CE Certified

CE & ISO9001

100+ Countries

Full After-Sales

Wood Based Panels Machinery Woodworking Machinery

Multifunctional PVC Edge Banding Machine 45 Degree Oblique Straight Manual MDF Board Making Box Gluing Based Panels Scrape Clean

Products Description DW3000 Fully automatic 45 degree oblique straight edge panel furniture edge banding machineThe Straight Bevel Edge banding machine with Large-scale gluing bearing. edge band slotting device. slotting height can be adjusted. edge banding is more compliant. double cylinder feeding belt is more stable and not shaking. double heat gun design. heating edge banding […]

Key Highlights

Performance

High-Precision Output

Certification

CE & ISO9001

Customization

OEM / ODM Ready

Export

Worldwide Shipping

Request a Quote WhatsApp

woodmachinebc@aliyun.com +86 156 6441 3539

Products Description

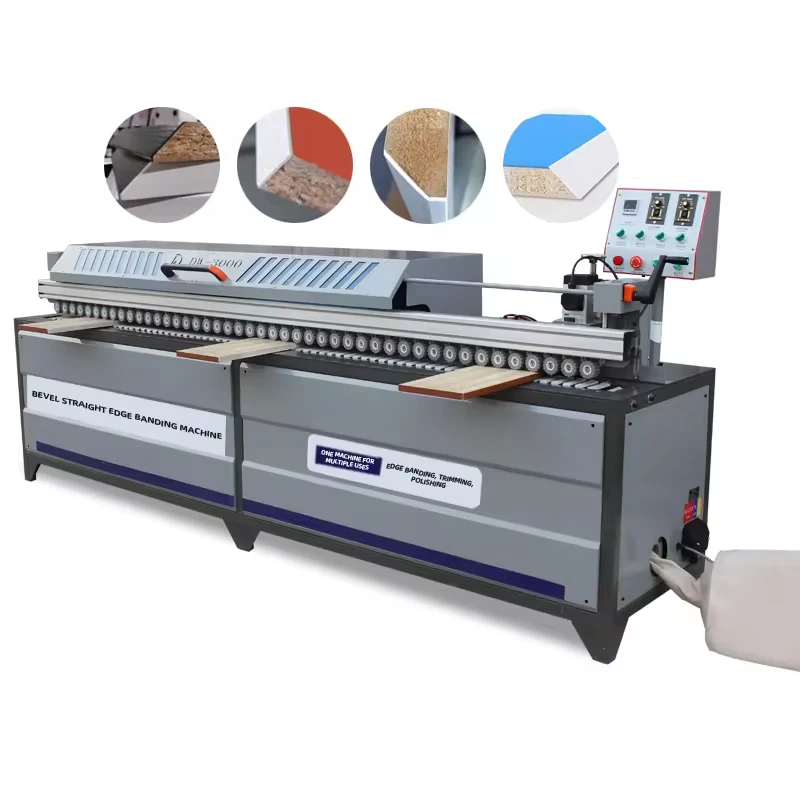

DW3000 Fully automatic 45 degree oblique straight edge panel furniture edge banding machine

The Straight Bevel Edge banding machine with Large-scale gluing bearing. edge band slotting device. slotting height can be adjusted. edge banding is more compliant. double cylinder feeding belt is more stable and not shaking. double heat gun design. heating edge banding is more obedient. 8 groups The angle of the oblique pressure wheel can be adjusted arbitrarily from 30 to 90. The 800W silent trimming motor. the industrial-grade polishing motor and the vacuuming motor are polished smoothly and cleanly. The DW3000 trimming motor is replaced with a spindle trimming motor. with a total of 3 spindle motors. With a flexible edge scraper to clean the glue line. the finish is better

Product Paramenters

Model	DW3000
Total power	11KW
Standard features	Plate milling. 30-90 degree edge banding. trimming. trimming. scraping and polishing. high-power vacuuming	Voltage	380V/415V
Minimum length of sheet	30CM	Minimum width of sheet	15CM
Edge banding height	0-50MM	Edge banding thickness	0.3-3MM
Pre-milled motor	2.2KW	Heating power	2.2KW*2
Edge power/speed	160W 0-12M/min	Air source pressure	0.5-0.7Mpa
Transmission power/speed	180W 0-12M/min	Glue pot capacity	4000ml
Trimming power/speed	2.2KW*2	Vacuum power	550W
Polishing power/speed	0.4KW*2
Product Size	29965130CM	Product weight	430KG
Package Size	31274115CM
Both oblique and straight. edge trimming and polishing. double hot air design. feeding auxiliary slide. 8 sets of oblique pressure wheels. automatic alignment. 45-degree pre-milling of the plate. edge banding with slots

Why Choose Us

Our company is a source enterprise specializing in the production and exportof woodworking machinery products. The main products are edge bandingmachine. slotting machine. woodworking saw table and other auxiliary products.Our products are widely sold in China and exported to Europe. North America.Southeast Asia. Russia and other countries and regions. and are wellreceived by customers.

FAQ

Q1.Are you a trade company or a manufacturer ?We are manufacturer in Dezhou city. Shandong province of China.

We can offer competitive price of machine with high quality.Q2:Can I choose the Plug?Yes.we have EU.USA.AU.UK plug for your country useQ3:Is it OK to print my logo on the product?Yes.Please inform us formally before our production and confirm the design firstly for the mass production.Q4.I do not know Chinese.will the operation panel in English or French or other?Yes.all our machine are with Chinese and English.If you want only English or Spanish or other.we also can customize to youQ5:It is my first time to purchase goods from china.how do i do? Do not worry.Bei chen has 10 years export experience to all over the world.also has professional sales team.We have exported to Russia. Pakistan. Algeria. Vietnam. Peru and many other countries.Q6:How to pack the machine? We use wooden box to packge the machine to protect them to be safe.Q7.What to do if l have any other specifications for the current?lf you have any different requirements.just contact us and we will meet you.Q8.lf I need a sample for pretest. do you sale sample for this inquiry ?Yes. we can sale sample for pretest. lf you need this service. please contact us and we will giveyou a quotation.Q9.Can you produce the products according to my own drawings?Yes. we can do OEM according to your requirement

Standard specifications are listed below. Custom configurations are available -- contact us for tailored solutions.

Parameter	Value
Product Name	Multifunctional PVC Edge Banding Machine 45 Degree Oblique Straight Manual MDF Board Making Box Gluing Based Panels Scrape Clean
Category	Wood Based Panels Machinery, Woodworking Machinery
Certification	CE, ISO9001
Voltage	220V/380V (Customizable)
Warranty	1 Year
After-Sales	Remote technical support, spare parts supply
OEM/ODM	Available -- logo, color, voltage, language
Delivery	Standard export packaging, worldwide shipping
MOQ	1 Unit
Lead Time	15-30 days (subject to order)

* Specifications may vary by model. Contact our team for exact technical data sheets.

Product Features

High-precision machining with ±0.1mm tolerance
Durable components for long service life
User-friendly operation panel
Low noise, energy-efficient motor
Quick blade/part change design
Safety guard and emergency stop
Smooth conveyor belt system
Stable performance under continuous operation

OEM / ODM Service

Custom logo & brand labeling
Voltage configuration (220V/380V/440V)
Multilingual control panels (EN/ES/FR/AR)
Color & appearance customization
Custom packaging & export crating
Private label / white-label service
Technical documentation in your language
Dedicated account manager support

Full After-Sales Support Included

Remote technical guidance · Warranty coverage · Spare parts supply · Operation training · EN/ES service teams
