Multi-Functional Automatic Electric High Efficiency Portable Small Edge Bander Pvc Wood Edge Banding Machine

Other Woodworking Machinery

CE Certified

CE & ISO9001

100+ Countries

Full After-Sales

Other Woodworking Machinery Woodworking Machinery

Multi-Functional Automatic Electric High Efficiency Portable Small Edge Bander Pvc Wood Edge Banding Machine

Product Description ZDSF210 Full Line High Speed Edge Banding Machine Full-automatic operation is smoother. steel plate type guide rail. front and rear anti-shape glue pot. the plate is easy to apply glue evenly. the edge sealing is more compact. the elastic device is pressed twice. the frame type motor base. the sealing plate is more […]

Key Highlights

Performance

High-Precision Output

Certification

CE & ISO9001

Customization

OEM / ODM Ready

Export

Worldwide Shipping

Request a Quote WhatsApp

woodmachinebc@aliyun.com +86 156 6441 3539

Product Description

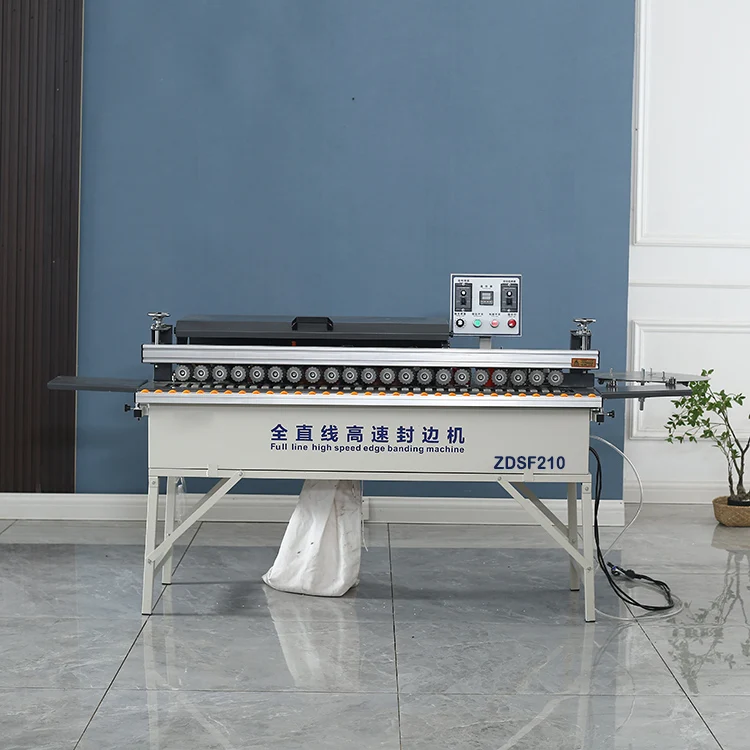

ZDSF210 Full Line High Speed Edge Banding Machine

Full-automatic operation is smoother. steel plate type guide rail. front and rear anti-shape glue pot. the plate is easy to apply glue evenly. the edge sealing is more compact. the elastic device is pressed twice. the frame type motor base. the sealing plate is more convenient without shaking. the trimming motor is up. down. left and right profiling trimming. the precision slide. the fitting and dust absorption. the cleaning of the foot line. the flexible edge scraping function. the sealing effect is better.and the cross polishing.

Banding Effect

Linear Edge Banding Type with Airtight Dust Collection and Cleaning Function.Features:1. Steel rod guide rail makes automatic operation smoother.2. Cross polishing in result of better banding effect. 3. The profiling glue pot glue the panels evenly. 4. Frame type motor base to ensure no shaking and convenient for edge banding. 5. Trimming motor can move up and down. left and right to realize profile trimming. 6. Secondary pressing of elastic device makes edge banding more tight. 7. Specially adopts flexible scraping and glue line cleaning functions.

Specification

Model	ZDSF210 Full Line High Speed Edge Banding Machine
Place of Origin	China
Condition	New
Type	Edge Banding Machine
Function	Full Line High Speed Edge Banding Machine
Edge banding speed	6m/min
Brand Name	ZDS
Belt Feed Motor	25W
Board Feed Motor	120W
Trimming Motor	800W*2
Heating Motor	800W
Vacuum Fan	1200W
Dimension(LWH)	1500570630mm
Weight (KG)	155kg
Glue Capacity	1000ml
Warranty	1 Year
Key Selling Points	Automatic
Video outgoing-inspection	Provided
Warranty of core components	1 Year
Core Components	Motor. Engine
Usage	MDF furniture Production

Details Images

Steel rod guide

Profile trimming

Edge sealing is tighter
Elastic device secondary pressing

Precision slide
Fit vacuuming

Sheets are easily and evenly glued

Cross polishing . better sealing effect

Clean the glue line

Flexible scraping function

Frame type motor base

Easy to seal. do not shake

Recommend Products

Packing & Delivery

Company Profile

ABOUT US

Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a CNC machinery company in Lunjiao. Foshan

City.

Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. CNC nesting machine. CNC wood router. CNC six-sided drilling and milling processing center. CNC side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries. In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.

FAQ

Q1: How to make an order?

A1:You can order online . Or Email us your details. and we will contact you immediately and help you
proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?
A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?
A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?
A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?
A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?
A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.

Standard specifications are listed below. Custom configurations are available -- contact us for tailored solutions.

Parameter	Value
Product Name	Multi-Functional Automatic Electric High Efficiency Portable Small Edge Bander Pvc Wood Edge Banding Machine
Category	Other Woodworking Machinery, Woodworking Machinery
Certification	CE, ISO9001
Voltage	220V/380V (Customizable)
Warranty	1 Year
After-Sales	Remote technical support, spare parts supply
OEM/ODM	Available -- logo, color, voltage, language
Delivery	Standard export packaging, worldwide shipping
MOQ	1 Unit
Lead Time	15-30 days (subject to order)

* Specifications may vary by model. Contact our team for exact technical data sheets.

Product Features

High-precision machining with ±0.1mm tolerance
Durable components for long service life
User-friendly operation panel
Low noise, energy-efficient motor
Quick blade/part change design
Safety guard and emergency stop
Smooth conveyor belt system
Stable performance under continuous operation

OEM / ODM Service

Custom logo & brand labeling
Voltage configuration (220V/380V/440V)
Multilingual control panels (EN/ES/FR/AR)
Color & appearance customization
Custom packaging & export crating
Private label / white-label service
Technical documentation in your language
Dedicated account manager support

Full After-Sales Support Included

Remote technical guidance · Warranty coverage · Spare parts supply · Operation training · EN/ES service teams
