Mobile Pre Milling Pvc Edge Band Tape Manufacturer Machine Return Conveyor Edge Bander Kdt

Products Disply ModelZDS280The main functionGluing. End trimming. Fine trimming. Scraping. Buffing.CleaningWorking pressure0.65MpaVoltage380V-3HPConveyor belt speed9-12m/minPower9kwMin. panel width60mmMin. panel length120mmPanel thickness10-60mmEdge thickness0.3-3mmWeight890kgDimensions2950*750*1250mm ZDS280 Linear edge banding machine:Gluing.End Trimming.Fine Trimming.Scraping.Buffing.Cleaning1. Small size and complete functions.2. Light touch computer display control.3. Rotary edge banding support disc.4. The feeding table for edge banding adopts a single table design.5. Automatic gluing device.6. […]

Key Highlights

Performance

High-Precision Output

Certification

CE & ISO9001

Customization

OEM / ODM Ready

Export

Worldwide Shipping

Request a Quote WhatsApp

woodmachinebc@aliyun.com +86 156 6441 3539

Products Disply

Model	ZDS280
The main function	Gluing. End trimming. Fine trimming. Scraping. Buffing.Cleaning
Working pressure	0.65Mpa	Voltage	380V-3HP
Conveyor belt speed	9-12m/min	Power	9kw
Min. panel width	60mm	Min. panel length	120mm
Panel thickness	10-60mm	Edge thickness	0.3-3mm
Weight	890kg	Dimensions	29507501250mm

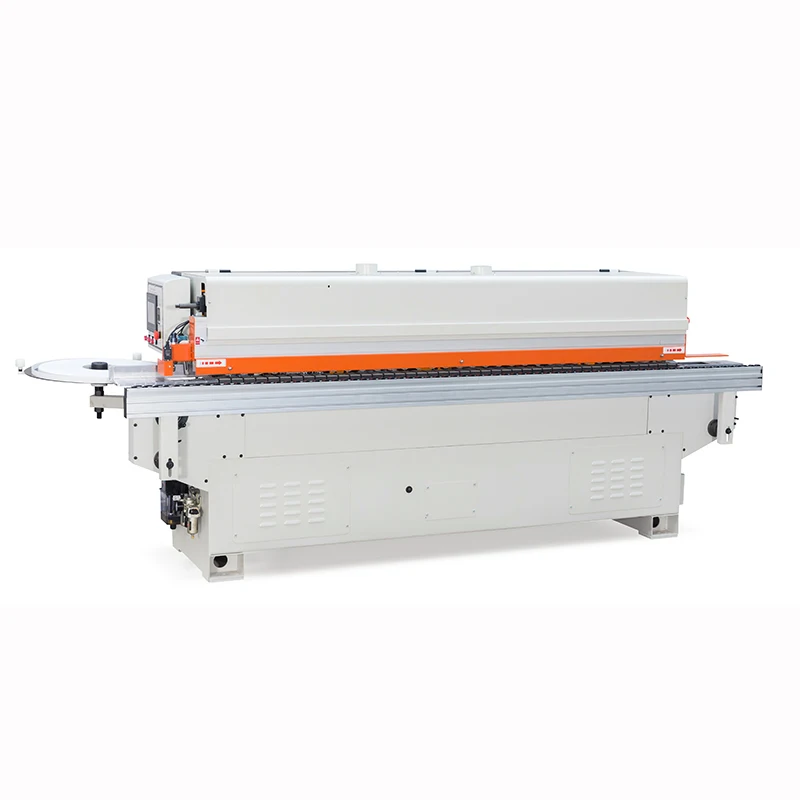

ZDS280 Linear edge banding machine:

Gluing.End Trimming.Fine Trimming.Scraping.Buffing.Cleaning

1. Small size and complete functions.2. Light touch computer display control.3. Rotary edge banding support disc.4. The feeding table for edge banding adopts a single table design.5. Automatic gluing device.6. Dual air pressure edge banding with pressure rollers. automatic adjustment device. simple and reliable.7. The front and rear cutting device with imported wide linear guide rail structure is adopted. which has high strength and reliable precision.

Product details

The touch screen. frequency converter and PLC all adopt Taiwan Delta. which is stable in operation and easy to operate.

Gluing

It adopts Teflon spraying process and scientific glue back design. It can make the temperature of the glue in the glue pot uniform without carbonization. and maintain good fluidity.

Pressing

The pneumatic design with double-wheel adjustable stroke makes the pressure adjustment easier. It can be adjusted according to the thickness of the edge banding. Improved bonding properties of glue and sidebands.

End Trimming

The air pressure balance device is adopted. which is more stable and easier to adjust. And optimize the gas path design. reduce the noise. and improve the efficiency of the equipment.

Fine Trimming

The stable frame design reduces the vibration of the tool during high-speed cutting. The design of the cutting edge is optimized to make the workpiece more perfect after edge sealing.

Scraping

Small and compact edge scraping. solve the problem of uneven trimming. At the same time. trim the excess sideband to make the sideband more beautiful.

Buffing

Up and down polishing. motor 0.37kw*2.

Contactors produced by Schneider Electric. UFC high speed motor

Company Profile

_{ABOUT US}

Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a C N C machinery company in Lunjiao. Foshan City.Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. C N C nesting machine. C N C wood router. C N C six-sided drilling and milling processing center. C N C side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries.In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.

Package And Shipping

FAQ

Q1: How to make an order?

A1:You can order online . Or Email us your details. and we will contact you immediately and help you proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?

A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?

A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?

A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?

A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?

A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.
