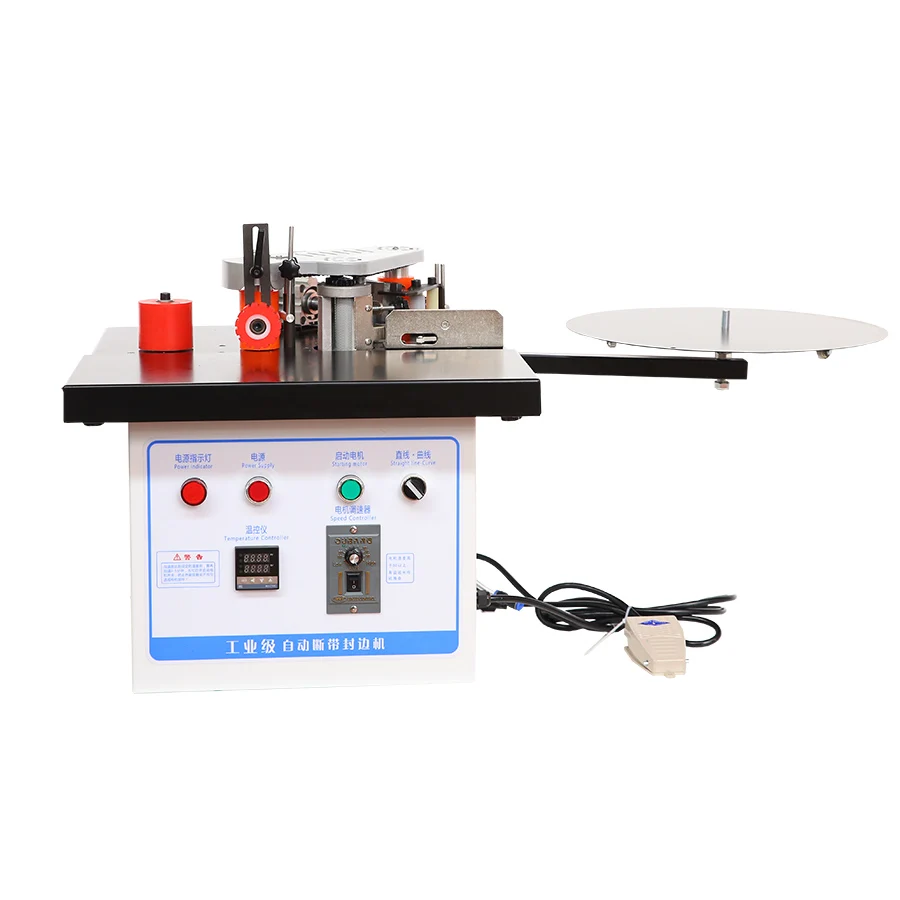

High Speed Mini Woodworking Edge Bander Edge Binding Machine Automatic Pvc Edge Banding Machine
Other Woodworking Machinery
CE Certified
High Speed Mini Woodworking Edge Bander Edge Binding Machine Automatic Pvc Edge Banding Machine thumbnail
High Speed Mini Woodworking Edge Bander Edge Binding Machine Automatic Pvc Edge Banding Machine view 2
High Speed Mini Woodworking Edge Bander Edge Binding Machine Automatic Pvc Edge Banding Machine view 3
High Speed Mini Woodworking Edge Bander Edge Binding Machine Automatic Pvc Edge Banding Machine view 4
CE & ISO9001
100+ Countries
Full After-Sales
Other Woodworking Machinery Woodworking Machinery

High Speed Mini Woodworking Edge Bander Edge Binding Machine Automatic Pvc Edge Banding Machine

Products Disply Product Parameters NameZDSF50 Mini Edge Banding MachineRated voltage220vPower1.2KWFunctionDouble side gluing for Straight&Curved&Shaped EdgeRated air pressure0.4-0.6mpaStrip thickness0.5-1.5mmSheet thickness10-60mmGlue capacity1000mlHeating Time5-10minEdge banding speed0-6m/minOverall size54*54*56cmMachine weight26kg Product details 1000ml glue pot. 4 heating tubes for heating. the sol speed is fast.Glue-coated rollers. double-sided glue. more firm edge sealing. Adjustable pressure rollers can be adjusted according to […]

Key Highlights

Performance
High-Precision Output
Certification
CE & ISO9001
Customization
OEM / ODM Ready
Export
Worldwide Shipping
Request a Quote WhatsApp
woodmachinebc@aliyun.com +86 156 6441 3539
Products Disply
Product Parameters
Name
ZDSF50 Mini Edge Banding Machine
Rated voltage
220v
Power
1.2KW
Function
Double side gluing for Straight&Curved&Shaped Edge
Rated air pressure
0.4-0.6mpa
Strip thickness
0.5-1.5mm
Sheet thickness
10-60mm
Glue capacity
1000ml
Heating Time
5-10min
Edge banding speed
0-6m/min
Overall size
54*54*56cm
Machine weight
26kg
Product details
1000ml glue pot. 4 heating tubes for heating. the sol speed is fast.
Glue-coated rollers. double-sided glue. more firm edge sealing.
Adjustable pressure rollers can be adjusted according to the thickness of the board. making edge banding easier.
Edge strip transport bayonet can be adjusted according to the height of edge strip.
Pneumatically controlled belt breaking device. easy to operate.
Foot switch makes it easier to break the tape when sealing the curve.
Equipped with a travel switch. it can automatically break the belt when sealing the edge in a straight line.
The pressing roller made of rubber makes the edge banding firmer.
Company Profile
ABOUT US
Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a C N C machinery company in Lunjiao. Foshan City.Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. C N C nesting machine. C N C wood router. C N C six-sided drilling and milling processing center. C N C side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries.In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.
Package And Shipping
FAQ
Q1: How to make an order?
A1:You can order online . Or Email us your details. and we will contact you immediately and help you proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?
A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?
A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?
A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?
A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?
A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.

Standard specifications are listed below. Custom configurations are available -- contact us for tailored solutions.

Parameter Value
Product Name High Speed Mini Woodworking Edge Bander Edge Binding Machine Automatic Pvc Edge Banding Machine
Category Other Woodworking Machinery, Woodworking Machinery
Certification CE, ISO9001
Voltage 220V/380V (Customizable)
Warranty 1 Year
After-Sales Remote technical support, spare parts supply
OEM/ODM Available -- logo, color, voltage, language
Delivery Standard export packaging, worldwide shipping
MOQ 1 Unit
Lead Time 15-30 days (subject to order)

* Specifications may vary by model. Contact our team for exact technical data sheets.

Product Features

  • High-precision machining with ±0.1mm tolerance
  • Durable components for long service life
  • User-friendly operation panel
  • Low noise, energy-efficient motor
  • Quick blade/part change design
  • Safety guard and emergency stop
  • Smooth conveyor belt system
  • Stable performance under continuous operation

OEM / ODM Service

  • Custom logo & brand labeling
  • Voltage configuration (220V/380V/440V)
  • Multilingual control panels (EN/ES/FR/AR)
  • Color & appearance customization
  • Custom packaging & export crating
  • Private label / white-label service
  • Technical documentation in your language
  • Dedicated account manager support
Full After-Sales Support Included
Remote technical guidance · Warranty coverage · Spare parts supply · Operation training · EN/ES service teams
