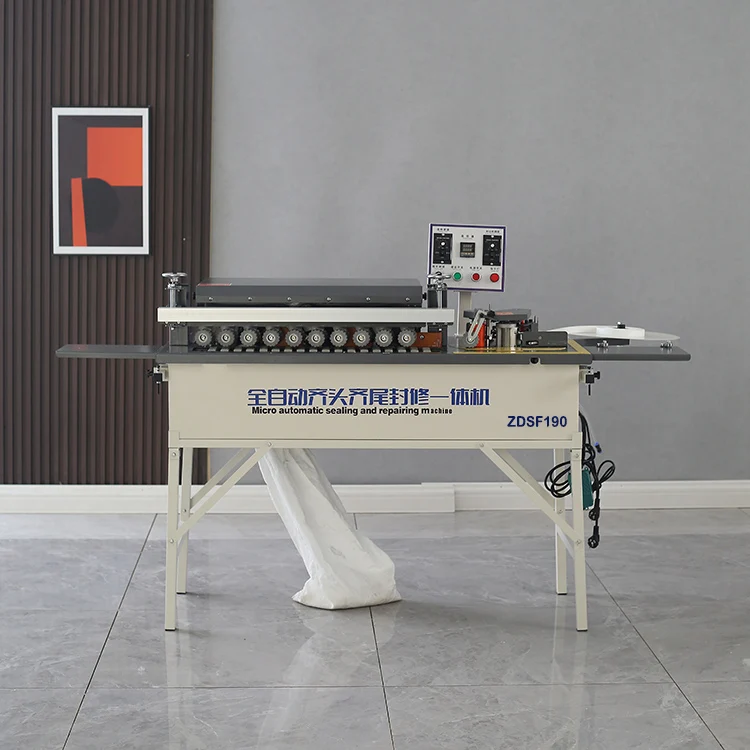

High Speed Automatic Edge Banding Machine With Edge Banding Trimming Buffing and End Cutting Edge Bander

Wood Based Panels Machinery

CE Certified

High Speed Automatic Edge Banding Machine With Edge Banding Trimming Buffing and End Cutting Edge Bander thumbnail

CE & ISO9001

100+ Countries

Full After-Sales

Wood Based Panels Machinery Woodworking Machinery

High Speed Automatic Edge Banding Machine With Edge Banding Trimming Buffing and End Cutting Edge Bander

Product Paramenters ModelZDSF190FunctionAutomatic plate feeding. .Automatically break the beltDouble-sided gluing .Upper and lower trimming and polishingCurved and straight edgebanding .Large diameter surrounding vacuumEdge typeBoth curved and straight linesVoltage220v50hzRated power4kwRated air pressure0.4-0.6mpaSuction1200wBelt power25wTransmission power120wHeating power800wPolishing power180w*2Trimming power800w*2Conveyer belt0-14m/minFeed plate0-14m/minSheet thickness10-50mmStrip thickness0.5-2.5mmGlue capacity1000mlOverall size1900*560*1300mmPacking size138*58*64cmWeight120kg our servicesWe can provide you with various custom services Products Disply Miniature Fully […]

Key Highlights

Performance

High-Precision Output

Certification

CE & ISO9001

Customization

OEM / ODM Ready

Export

Worldwide Shipping

Request a Quote WhatsApp

woodmachinebc@aliyun.com +86 156 6441 3539

Product Paramenters

Model	ZDSF190
Function	Automatic plate feeding. .Automatically break the belt Double-sided gluing .Upper and lower trimming and polishing Curved and straight edgebanding .Large diameter surrounding vacuum
Edge type	Both curved and straight lines
Voltage	220v50hz
Rated power	4kw
Rated air pressure	0.4-0.6mpa
Suction	1200w
Belt power	25w
Transmission power	120w
Heating power	800w
Polishing power	180w*2
Trimming power	800w*2
Conveyer belt	0-14m/min
Feed plate	0-14m/min
Sheet thickness	10-50mm
Strip thickness	0.5-2.5mm
Glue capacity	1000ml
Overall size	19005601300mm
Packing size	1385864cm
Weight	120kg
our services	We can provide you with various custom services

Products Disply

Miniature Fully Automatic Curved and Straight Dual-purpose Edge Banding Machine

The use of square slide rail realizes profiling and trimming. and the use of imported brand 4-blade alloy arc knife to trim the plate effect arc shape. automatic end cutting. use two big diameter dust collectors. close fit. collecting effect can reach 99%. For crawler transmission. we use steel rod slide rails. which is more stable in delivery. and the real materials can be seen!

Product details

Control panel. multi-function button operation. save worry and effort.

The aluminum alloy pressure beam can be adjusted. and the plate conveying is more stable.

It can be used for straight edge banding. and can be used for curved edge banding after rotating 180 degrees. which is powerful.

Pneumatically controlled edge strip cutting device makes work easier.

Double-row rubber pressure wheels. automatic plate feeding. large-size plates can also be transported stably.

2 high-speed trimming motors. combined with a large-diameter vacuum device. trims the edges beautifully and cleanly.

Glue roller. adjustable glue volume.

Push-type limit switch. precise control.

Extended feed plate. more convenient to use.

4-edge arc-shaped alloy cutter head. the arc-shaped trimming is more beautiful.

Polishing device. cross polishing up and down.

Comes with a tray for edge banding.

Company Profile

_{ABOUT US}

Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a C N C machinery company in Lunjiao. Foshan City.Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. C N C nesting machine. C N C wood router. C N C six-sided drilling and milling processing center. C N C side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries.In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.

Package And Shipping

FAQ

Q1: How to make an order?

A1:You can order online . Or Email us your details. and we will contact you immediately and help you proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?

A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?

A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?

A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?

A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?

A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.

Standard specifications are listed below. Custom configurations are available -- contact us for tailored solutions.

Parameter	Value
Product Name	High Speed Automatic Edge Banding Machine With Edge Banding Trimming Buffing and End Cutting Edge Bander
Category	Wood Based Panels Machinery, Woodworking Machinery
Certification	CE, ISO9001
Voltage	220V/380V (Customizable)
Warranty	1 Year
After-Sales	Remote technical support, spare parts supply
OEM/ODM	Available -- logo, color, voltage, language
Delivery	Standard export packaging, worldwide shipping
MOQ	1 Unit
Lead Time	15-30 days (subject to order)

* Specifications may vary by model. Contact our team for exact technical data sheets.

Product Features

High-precision machining with ±0.1mm tolerance
Durable components for long service life
User-friendly operation panel
Low noise, energy-efficient motor
Quick blade/part change design
Safety guard and emergency stop
Smooth conveyor belt system
Stable performance under continuous operation

OEM / ODM Service

Custom logo & brand labeling
Voltage configuration (220V/380V/440V)
Multilingual control panels (EN/ES/FR/AR)
Color & appearance customization
Custom packaging & export crating
Private label / white-label service
Technical documentation in your language
Dedicated account manager support
