Products Disply

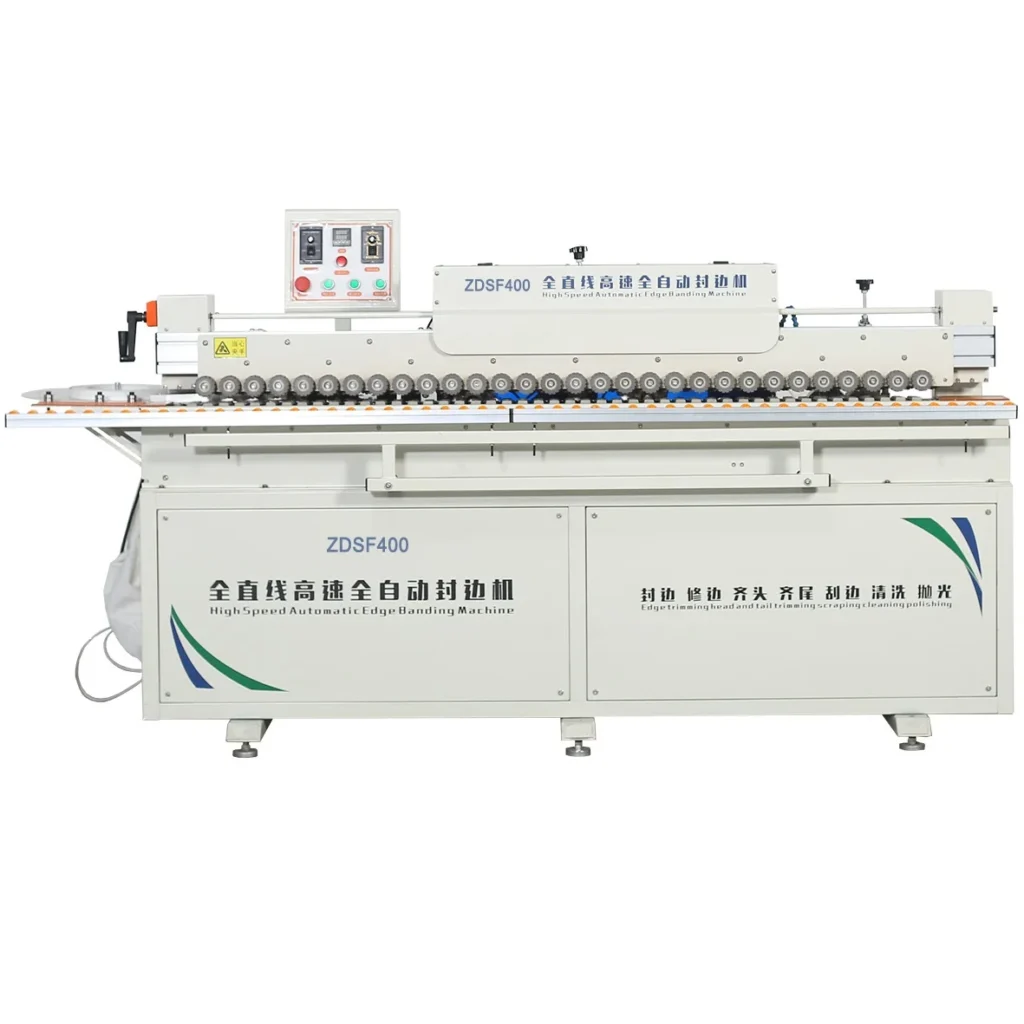

ZDSF400 high speed full straight automatic edge banding machine

FEATURES??/FONT>

*High speed
*Upper and lower flexible scraping
*Full straight
*end cutting
*fine trimming
*polishing

This machine is suitable for straight edge banding of fiberboard. particle board and other plate workpieces. The machine adopts high-quality motors. imported electrical components. serialized products. diversified customer choices. and features high accuracy and high efficiency.

Product Paramenters

Model	ZDSF400 automatic high speed full straight edge banding machine
Function	Gluing. end cutting. Trimming. scraping. polishing. vacuuming
Edge type	Straight lines
Voltage	220v50hz
Rated power	3kw
Rated air pressure	0.4-0.6mpa
Strip thickness	1-3mm
Sheet thickness	10-55mm
Sheet width	??0mm
Feed plate	0-14m/min
Conveyer belt	0-14m/min
Glue capacity	1000ml
Heating power	800w (5-10min)
Trimming power	800w*2 (24000rpm)
Polishing power	180w*2 (5500rpm)
Suction power	550w
Overall size	24070120cm
Machine weight	370kg

Product details

Both large and small plates can be sealed. let you no longer worry about choosing configuration.

The frame is made of aluminum alloy. use large size and high specification.

Upper and lower flexible scraping + glue removing spray device.

800W * 2 air-cooled spindle motor. the trimming is full of strength. and the noise is smaller.

Using a large polishing wheel with a diameter of 150mm

Double bearing rail chrome-plated rod structure. Increase the smoothness of the chain block. reduce the friction of the chain block. and increase the service life.

High precision position display. digital display to adjust the plate is more convenient.

The equipment comes with a vacuum fan. the central dust collection effect reaches 95%

Integrated lift and pressure beam. adjust the height of the pressure beam without running around on both sides.

Adopt 1 + 2 pressing wheel combination.

2 sets of elastic pressing combination . the side-band is more firmly attached.
