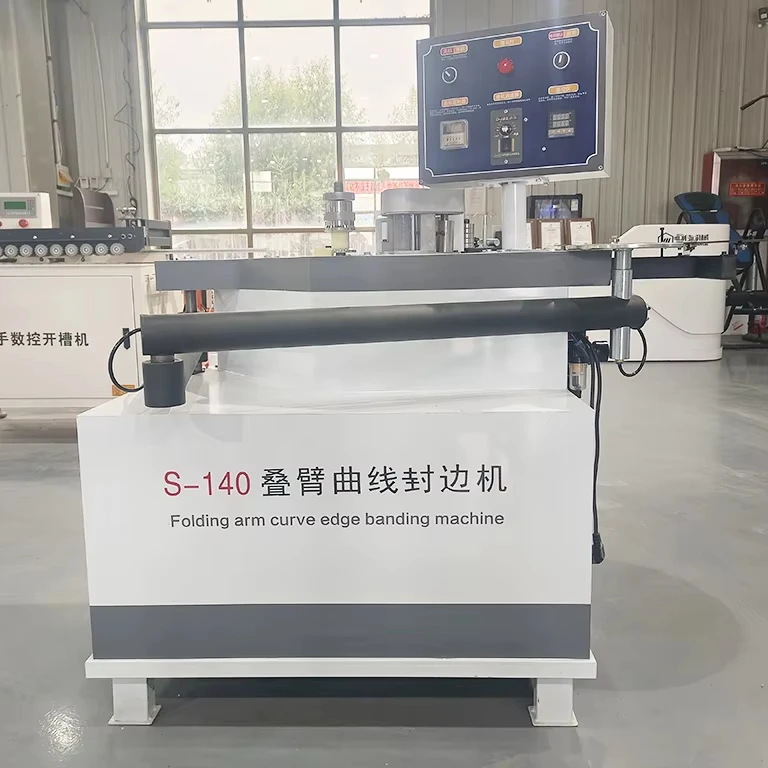

Furniture Woodworking Board Manual Curve Edge Banding Machine Swing Arm MDF PVC Wood Edge Bander

Products Disply Curve edge banding machine features:1.Double-sided gluing2.Straight and curved dual purpose 3. Arm folding device 4. Automatic belt break 5. Pure copper motor 6. Strong suction cup 7.One-shot molding The folding arm arc edge banding machine solves the problem of edge banding of panel furniture. study tables. office furniture. etc. Application: panel furniture. customized […]

Key Highlights

Performance

High-Precision Output

Certification

CE & ISO9001

Customization

OEM / ODM Ready

Export

Worldwide Shipping

Request a Quote WhatsApp

woodmachinebc@aliyun.com +86 156 6441 3539

Products Disply

Curve edge banding machine features:

1.Double-sided gluing
2.Straight and curved dual purpose

3. Arm folding device

4. Automatic belt break

5. Pure copper motor

6. Strong suction cup

7.One-shot molding

The folding arm arc edge banding machine solves the problem of edge banding of panel furniture. study tables. office furniture. etc. Application: panel furniture. customized furniture. cabinet wardrobe. office furniture. tables and chairs. doors and windows. wood products. decoration industry. etc.

Functional display

Product details

Control Panel1 Intelligent temperature control2 Speed adjustment3 Timer for curve edge banding

Increase the size of the glue pot. reduce the number of glue additions. and improve efficiency.

Edge banding wheelAdjust according to the width of the edge strip +0.5mm to prevent the edge strip from shifting.

Hot air deviceBottom-up hot air heating improves the adhesion between the edge banding strip and the board.

strong suction cupFirmly absorb the board to prevent it from falling off.

Automatic belt breaking device controlled by double cylinders

Product Parameters

Model	S-140	W-2	W-3
Voltage	220V	220V50Hz	220V50Hz
Total power	1.4kw	1.4kw	3.4kw
Air source air pressure	0.5-0.8Mpa	0.5-0.8Mpa	0.5-0.8Mpa
Edge banding speed	0-180mm/s	0-180mm/s	0-180mm/s
Overall size	966288CM	12008001220mm	12101100970mm
Machine size	10565120CM
weight	88kg	152kg	152kg
Standard suction cup	200*26mm	300*26mm	300*26mm
Edge band thickness	0.4-2mm	0.4-2mm	0.4-2mm
Edge band width	8-50mm	8-50mm	8-50mm
Breaking method	Automatic tape break
Glue pot capacity	1000ml
