Furniture Pvc Edge Banding Strip Making Machine Edging Machine Pvc Edge Banding Corner Rounding Machine

Wood Based Panels Machinery

CE Certified

Furniture Pvc Edge Banding Strip Making Machine Edging Machine Pvc Edge Banding Corner Rounding Machine thumbnail

CE & ISO9001

100+ Countries

Full After-Sales

Wood Based Panels Machinery Woodworking Machinery

Furniture Pvc Edge Banding Strip Making Machine Edging Machine Pvc Edge Banding Corner Rounding Machine

Products Disply Miniature fully automatic sealing and repairing machineFunction:automatic feedingDouble-sided adhesiveUp and down trimming and polishingAutomatic head and tailCurved line dual purposeEfficient vacuuming Product Paramenters Voltage220vSuction power1200wBelt power25wTransmission power60wPolishing power180w*2Trimming power800w*2Conveying speed0-15m/minEdging speed0-6m/minEdge height10-60mmEdge thickness0.3-3mmOverall size120*54*72cmPacking size/weight132*53*63/81kg Product details 1. Control panel. each function is controlled separately. easy to operate.2. Glue can be applied on […]

Key Highlights

Performance

High-Precision Output

Certification

CE & ISO9001

Customization

OEM / ODM Ready

Export

Worldwide Shipping

Request a Quote WhatsApp

woodmachinebc@aliyun.com +86 156 6441 3539

Products Disply

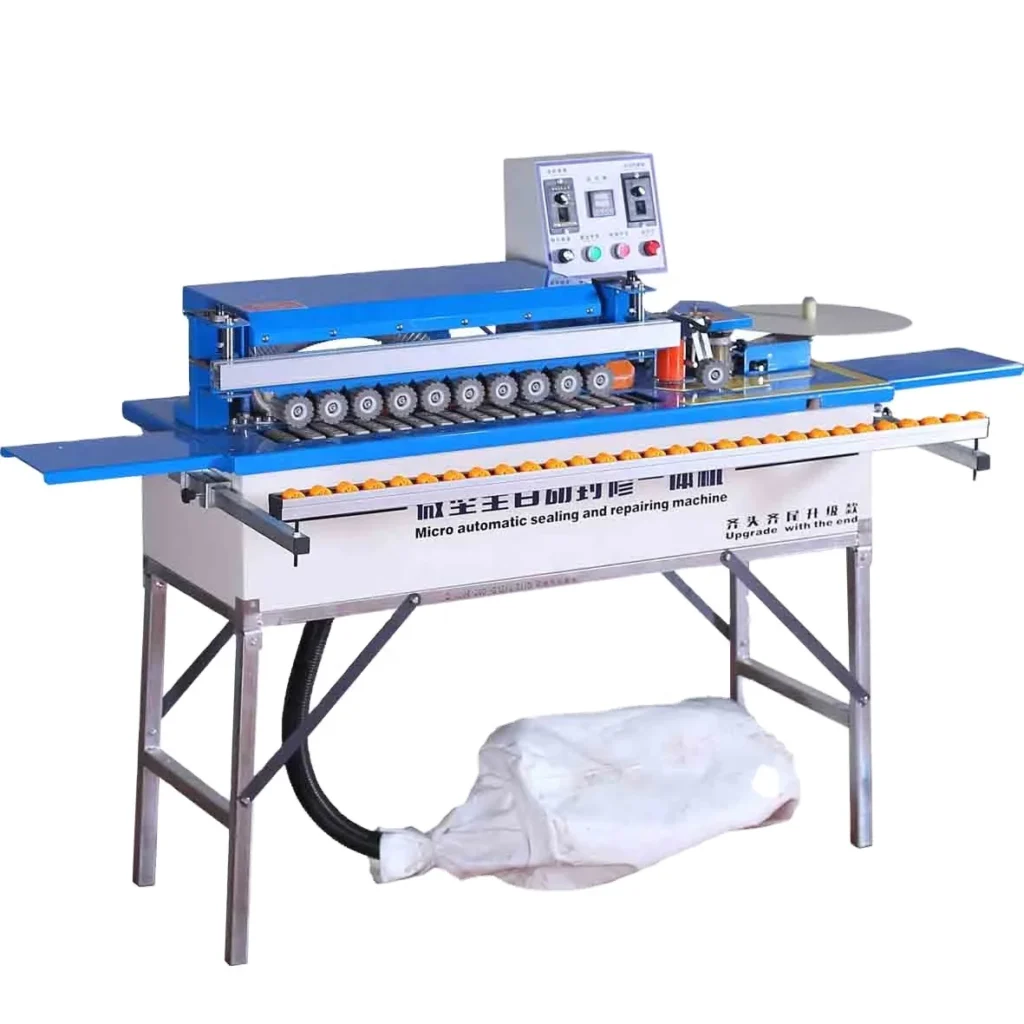

Miniature fully automatic sealing and repairing machine

Function:

automatic feeding

Double-sided adhesive

Up and down trimming and polishing

Automatic head and tail

Curved line dual purpose

Efficient vacuuming

Product Paramenters

Voltage	220v
Suction power	1200w
Belt power	25w
Transmission power	60w
Polishing power	180w*2
Trimming power	800w*2
Conveying speed	0-15m/min
Edging speed	0-6m/min
Edge height	10-60mm
Edge thickness	0.3-3mm
Overall size	1205472cm
Packing size/weight	1325363/81kg

Product details

1. Control panel. each function is controlled separately. easy to operate.2. Glue can be applied on both sides. and the adhesion is more firm.3. The gluing device can be rotated 180 degrees for curved edge banding.

Automatic board feeding

Double-row rubber pressure wheels. stable transmission. and the plate is not easy to be misaligned.

Trimming and buffing

1. Two 180-watt polishing motors. cross polishing up and down. more smooth.

2. Two 800-watt edge trimming motors. trimming up and down. with dust suction device.

Company Profile

_{ABOUT US}

Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a C N C machinery company in Lunjiao. Foshan City.Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. C N C nesting machine. C N C wood router. C N C six-sided drilling and milling processing center. C N C side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries.In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.

Package And Shipping

FAQ

Q1: How to make an order?

A1:You can order online . Or Email us your details. and we will contact you immediately and help you proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?

A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?

A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?

A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?

A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?

A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.

Standard specifications are listed below. Custom configurations are available -- contact us for tailored solutions.

Parameter	Value
Product Name	Furniture Pvc Edge Banding Strip Making Machine Edging Machine Pvc Edge Banding Corner Rounding Machine
Category	Wood Based Panels Machinery, Woodworking Machinery
Certification	CE, ISO9001
Voltage	220V/380V (Customizable)
Warranty	1 Year
After-Sales	Remote technical support, spare parts supply
OEM/ODM	Available -- logo, color, voltage, language
Delivery	Standard export packaging, worldwide shipping
MOQ	1 Unit
Lead Time	15-30 days (subject to order)

* Specifications may vary by model. Contact our team for exact technical data sheets.

Product Features

High-precision machining with ±0.1mm tolerance
Durable components for long service life
User-friendly operation panel
Low noise, energy-efficient motor
Quick blade/part change design
Safety guard and emergency stop
Smooth conveyor belt system
Stable performance under continuous operation

OEM / ODM Service

Custom logo & brand labeling
Voltage configuration (220V/380V/440V)
Multilingual control panels (EN/ES/FR/AR)
Color & appearance customization
Custom packaging & export crating
Private label / white-label service
Technical documentation in your language
Dedicated account manager support
