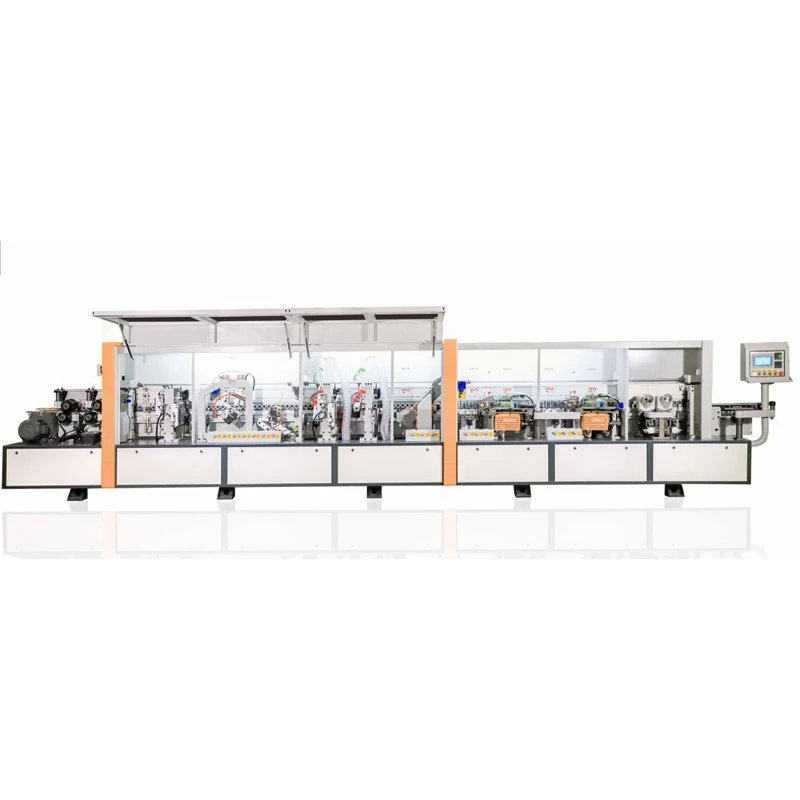

Full Automatic Linear Pur Double Trimming Abs Edge Banding Machine Gluing Pvc Mdf Kdt With Premiling
Wood Based Panels Machinery
CE Certified
Full Automatic Linear Pur Double Trimming Abs Edge Banding Machine Gluing Pvc Mdf Kdt With Premiling thumbnail
Full Automatic Linear Pur Double Trimming Abs Edge Banding Machine Gluing Pvc Mdf Kdt With Premiling view 2
Full Automatic Linear Pur Double Trimming Abs Edge Banding Machine Gluing Pvc Mdf Kdt With Premiling view 3
Full Automatic Linear Pur Double Trimming Abs Edge Banding Machine Gluing Pvc Mdf Kdt With Premiling view 4
CE & ISO9001
100+ Countries
Full After-Sales
Wood Based Panels Machinery Woodworking Machinery

Full Automatic Linear Pur Double Trimming Abs Edge Banding Machine Gluing Pvc Mdf Kdt With Premiling

Specification itemvaluePlace of OriginChinaConditionNewTypeedge banding machineBrand NameZDSVoltage3-HP-380 vDimension(L*W*H)800*100*160 cmPower (kW)18.5kwWeight (KG)2400kgApplicable IndustriesHome Use. Other. Factory product plywoodWarranty1 yearKey Selling PointsAutomatic double buffingVideo outgoing-inspectionProvidedWarranty of core components1 YearCore ComponentsBearing. Motor. Pump. Gear. PLC. Other. Gearbox. Pressure vessel. EngineUsageMDF ProductionNameAutomatic Edge Sealing MachineWorking pressure0.6MpaProcessed panel thickness10-60 mmEdge band thickness0.4-3 mmMin.panel300*60mm 150*150mm Products Disply Product Parameters ModelZDS-468JJThe main […]

Key Highlights

Performance
High-Precision Output
Certification
CE & ISO9001
Customization
OEM / ODM Ready
Export
Worldwide Shipping
Request a Quote WhatsApp
woodmachinebc@aliyun.com +86 156 6441 3539
Specification
item
value
Place of Origin
China
Condition
New
Type
edge banding machine
Brand Name
ZDS
Voltage
3-HP-380 v
Dimension(L*W*H)
800*100*160 cm
Power (kW)
18.5kw
Weight (KG)
2400kg
Applicable Industries
Home Use. Other. Factory product plywood
Warranty
1 year
Key Selling Points
Automatic double buffing
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
Bearing. Motor. Pump. Gear. PLC. Other. Gearbox. Pressure vessel. Engine
Usage
MDF Production
Name
Automatic Edge Sealing Machine
Working pressure
0.6Mpa
Processed panel thickness
10-60 mm
Edge band thickness
0.4-3 mm
Min.panel
300*60mm 150*150mm
Products Disply
Product Parameters
Model
ZDS-468JJ
The main function
Pre-milling. Gluing 1. Gluing 2. End trimming. Rough trimming. Fine trimming. Corner rounding. Scraping. Buffing 1. Buffing 2
Working pressure
0.6Mpa
Panel thickness
10-60mm
Edge thickness
0.4-3mm
Min. panel
300*60mm 150*150mm
Voltage
380V-3HP
Power
18.5kw
Weight
2300kg
Dimensions
8000*900*1600mm
Details Images
PLC control system
Excellent integrated control system. clear at a glance. easy to operate. and easy to learn
Pre-milling
Premilling unit with diamond cutters. 12000 rpm. 2x2.2 kW (3 HP). max. depth of cut 2 mm. max. workpiece height 60 mm. premilling cutters with diamond cutters width 65mm; ensures right angled and chip free workpiece edges.

Two Gluepots

Double glue pot. which can use different colors of glue to facilitate edge sealing operations of different colors
Optional PUR device

Pressing roller

6 sets of pressing roller wheels to tightly bond the edge banding strip and the plate
End trimming unit with two high frequency motors
0.37 kW .12000 rpm
Rough trimming system2 high frequency motors for upper and lower edge with 0.75 kW (1 HP); 12000 rpm. With 2pcs 6 teeth flat cutters.Edge belt thickness change by manual
Fine trimming system2 high frequency motor for upper and lower edge with 0.75 kW (1 HP); 12000 rpm. With 2pcs 6 teeth R2 cutters.Edge belt thickness change by manual.
Corner rounding
Four-motor profiling. tracking and trimming ·High-precision profiling. to ensure the perfect tactile and visual effects of work
piece processing ·Can achieve 4 different profiling effects. as well as diamond corners
Edge scrapingEdge scraping mechanism ·Remove knife marks left by trimming and finish R rounded corners ·Electro-pneumatically controlled blowing
Double Buffing unit
Upper and lower buffing unit ensures a perfect finish on the edge radius and removes any colour irregularities.

Flexible edge scraping

scrape the wave marks on the edge banding tape. more steadily

Narrow plate auxiliary device

Narrow plate edge sealing is more stable and won't deviate
Optional features

Slotting device

Grooves are made on the finished edge banding plate as needed. forming in one step to improve efficiency

Quick Sol Unit

With the upper melt system and the dual pre-melt system. the replacement is simple and convenient. The glue box is close to the pre-melt and the glue quantity control is more accurate.

About Optional Features

Edge banding machines can have different functional combinations (Pre-milling. Gluing. End trimming. Rough trimming. Fine trimming. Profiling unit . Scraping . Buffing . Grooving. Drilling). According to your needs. in addition to the basic functions. we have multiple models with combined functions. If you need other features or want to remove some features. you can contact us and we can recommend the appropriate model to you.
