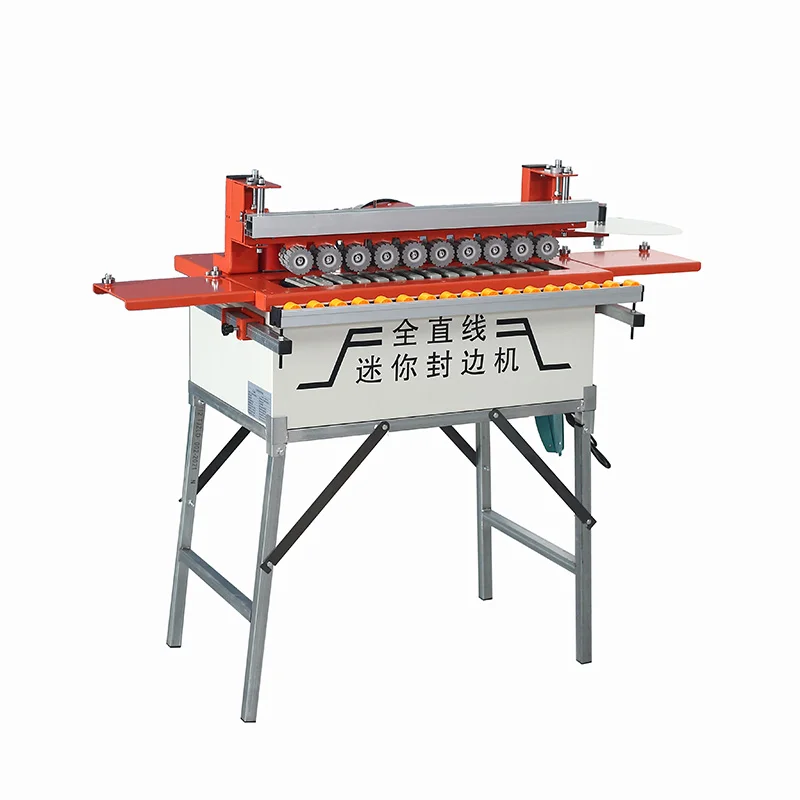

Easy to Operate High Speed Semi Automatic Edge Banding Machine Edge Bander Edging Machine for Wood

Products Disply Automatic straight and straight edge banding machine1. The crawler belt automatically feeds the boards and can seal the boards continuously.2. The stretchable 300mm bracket is more practical.3. The edge banding is automatically cut off.4. One-piece aluminum alloy pressure beam.5. Multiple profiling pressing rollers make the adhesion more firm.6. Curve edge banding can also […]

Key Highlights

Performance

High-Precision Output

Certification

CE & ISO9001

Customization

OEM / ODM Ready

Export

Worldwide Shipping

Request a Quote WhatsApp

woodmachinebc@aliyun.com +86 156 6441 3539

Products Disply

Automatic straight and straight edge banding machine

1. The crawler belt automatically feeds the boards and can seal the boards continuously.2. The stretchable 300mm bracket is more practical.3. The edge banding is automatically cut off.4. One-piece aluminum alloy pressure beam.5. Multiple profiling pressing rollers make the adhesion more firm.6. Curve edge banding can also be used.

Product Parameters

Name	mini edge banding machine
Model	ZDS750
Function	light. small and portable / automatic tape breaking / bending and straightening / Automatic board feeding
Widening bracket	stretch 300mm
Rated voltage	220v
Rated air pressure	0.4-0.6mpa
Strip thickness	0.5-2mm
Sheet thickness	7-50mm
Glue capacity	1000ml
Heating power	800w (5-8min)
Plate feeding power	60w
Belt feeding power	25w
Edge banding speed	0-6m/min
Overall size	1205050cm
Machine weight	50kg

Product details

Inner recessed control panel. more convenient for special-shaped edge banding.

Aluminum alloy pressure beam. double row of pressure wheels. more stable.

Automatic belt breaking device. easier to operate.

2 elastic pressing rollers make the adhesion more firm.

Stretchable fluent strips are more convenient for edge sealing of large-size plates.

After the gluing device is rotated 180 degrees. it can be used for edge banding of special shapes such as curves.

Package And Shipping

Company Profile

_{ABOUT US}

Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a C N C machinery company in Lunjiao. Foshan City.Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. C N C nesting machine. C N C wood router. C N C six-sided drilling and milling processing center. C N C side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries.In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.

FAQ

Q1: How to make an order?

A1:You can order online . Or Email us your details. and we will contact you immediately and help you proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?

A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?

A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?

A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?

A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?

A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.

Standard specifications are listed below. Custom configurations are available -- contact us for tailored solutions.

Parameter	Value
Product Name	Easy to Operate High Speed Semi Automatic Edge Banding Machine Edge Bander Edging Machine for Wood
Category	Wood Based Panels Machinery, Woodworking Machinery
Certification	CE, ISO9001
Voltage	220V/380V (Customizable)
Warranty	1 Year
After-Sales	Remote technical support, spare parts supply
OEM/ODM	Available -- logo, color, voltage, language
Delivery	Standard export packaging, worldwide shipping
MOQ	1 Unit
Lead Time	15-30 days (subject to order)

* Specifications may vary by model. Contact our team for exact technical data sheets.

Product Features

High-precision machining with ±0.1mm tolerance
Durable components for long service life
User-friendly operation panel
Low noise, energy-efficient motor
Quick blade/part change design
Safety guard and emergency stop
Smooth conveyor belt system
Stable performance under continuous operation
