DW802 Newest Design Full Mini Automatic Pvc Mdf Wood Edge Banding Machinery

Wood Based Panels Machinery

CE Certified

CE & ISO9001

100+ Countries

Full After-Sales

Wood Based Panels Machinery Woodworking Machinery

DW802 Newest Design Full Mini Automatic Pvc Mdf Wood Edge Banding Machinery

Products Description DW802 Newest Design Full Mini Automatic Pvc Mdf Wood Edge Banding MachineryDW802 Automatic Edge banding machine with gluing.trimming.end cutting and buffing for straight only.Wood bander machine is suitable for edge sealing of MDF. particleboard. solid wood board. ecological board. plywood. etc. This machine is stable and reliable. durable. price concessions. especially suitable for […]

Key Highlights

Performance

High-Precision Output

Certification

CE & ISO9001

Customization

OEM / ODM Ready

Export

Worldwide Shipping

Request a Quote WhatsApp

woodmachinebc@aliyun.com +86 156 6441 3539

Products Description

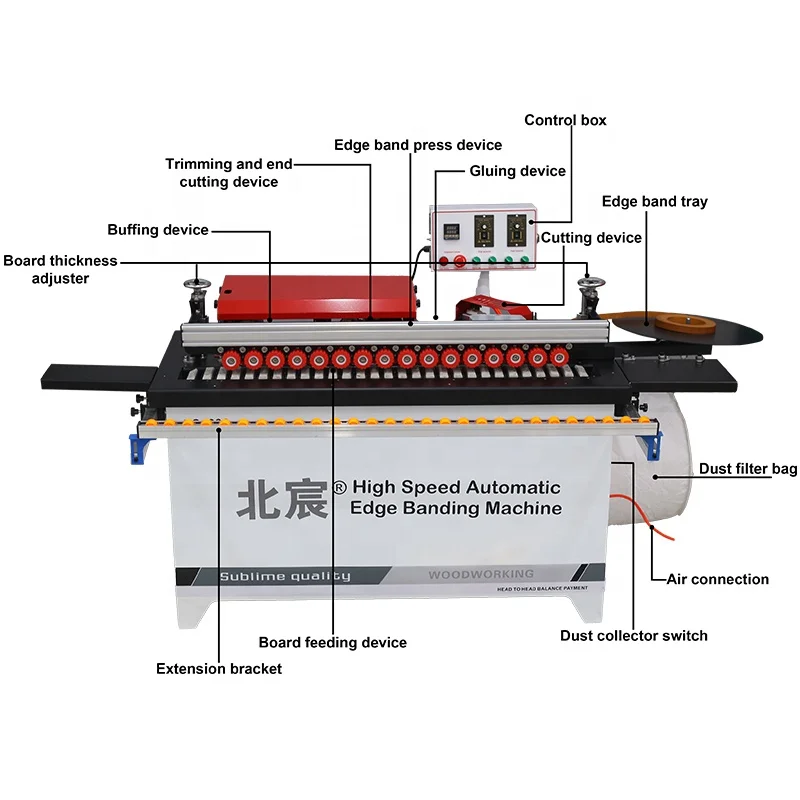

DW802 Newest Design Full Mini Automatic Pvc Mdf Wood Edge Banding Machinery

DW802 Automatic Edge banding machine with gluing.trimming.end cutting and buffing for straight only.

Wood bander machine is suitable for edge sealing of MDF. particleboard. solid wood board. ecological board. plywood. etc. This machine is stable and reliable. durable. price concessions. especially suitable for home decoration production.

Automatic edge bander machine is clean and tidy with the design of integrated pressure beam and the conveyor belt of silica gel material.

The plate is stable and firm and not easy to scratch the plate. The design of large capacity glue pot makes it unnecessary to put glue frequently. save time and effort for carpenters. and can continuously seal multiple plates. convenient operation

Standard features:Edge banding. trimming. polishing. automatic head and tail. with vacuum

Product Paramenters

Model	DW802
Total power	4200W
Standard features	Edge banding. trimming. polishing. automatic head and tail. with vacuum	voltage	220V/380V/customization
Minimum length of sheet	25CM	Minimum width of sheet	10CM
Edge banding height	0-50MM	Edge banding thickness	0.3-3MM
Edge power/speed	140W	Air source pressure	0.4-0.8Mpa
Transmission power/speed	140W	Glue pot capacity	4000ml
Trimming power/speed	800W*2	Vacuum power	1200W
Polishing power/speed	180W*2
Product Size	1306095CM	product weight	135KG
Package Size	Full wooden box 1346498CM Wooden box cover 1306096CM

Why Choose Us

Certifications

Company Profile

Our company is a source enterprise specializing in the production and exportof woodworking machinery products. The main products are edge bandingmachine. slotting machine. woodworking saw table and other auxiliary products.Our products are widely sold in China and exported to Europe. North America.Southeast Asia. Russia and other countries and regions. and are wellreceived by customers.

FAQ

Q1.Are you a trade company or a manufacturer ?We are manufacturer in Dezhou city. Shandong province of China.

We can offer competitive price of machine with high quality.Q2:Can I choose the Plug?Yes.we have EU.USA.AU.UK plug for your country useQ3:Is it OK to print my logo on the product?Yes.Please inform us formally before our production and confirm the design firstly for the mass production.Q4.I do not know Chinese.will the operation panel in English or French or other?Yes.all our machine are with Chinese and English.If you want only English or Spanish or other.we also can customize to youQ5:It is my first time to purchase goods from china.how do i do? Do not worry.Bei chen has 10 years export experience to all over the world.also has professional sales team.We have exported to Russia. Pakistan. Algeria. Vietnam. Peru and many other countries.Q6:How to pack the machine? We use wooden box to packge the machine to protect them to be safe.Q7.What to do if l have any other specifications for the current?lf you have any different requirements.just contact us and we will meet you.Q8.lf I need a sample for pretest. do you sale sample for this inquiry ?Yes. we can sale sample for pretest. lf you need this service. please contact us and we will giveyou a quotation.Q9.Can you produce the products according to my own drawings?Yes. we can do OEM according to your requirement

Standard specifications are listed below. Custom configurations are available -- contact us for tailored solutions.

Parameter	Value
Product Name	DW802 Newest Design Full Mini Automatic Pvc Mdf Wood Edge Banding Machinery
Category	Wood Based Panels Machinery, Woodworking Machinery
Certification	CE, ISO9001
Voltage	220V/380V (Customizable)
Warranty	1 Year
After-Sales	Remote technical support, spare parts supply
OEM/ODM	Available -- logo, color, voltage, language
Delivery	Standard export packaging, worldwide shipping
MOQ	1 Unit
Lead Time	15-30 days (subject to order)

* Specifications may vary by model. Contact our team for exact technical data sheets.

Product Features

High-precision machining with ±0.1mm tolerance
Durable components for long service life
User-friendly operation panel
Low noise, energy-efficient motor
Quick blade/part change design
Safety guard and emergency stop
Smooth conveyor belt system
Stable performance under continuous operation

OEM / ODM Service

Custom logo & brand labeling
Voltage configuration (220V/380V/440V)
Multilingual control panels (EN/ES/FR/AR)
Color & appearance customization
Custom packaging & export crating
Private label / white-label service
Technical documentation in your language
Dedicated account manager support

Full After-Sales Support Included

Remote technical guidance · Warranty coverage · Spare parts supply · Operation training · EN/ES service teams
