Edge banding machine

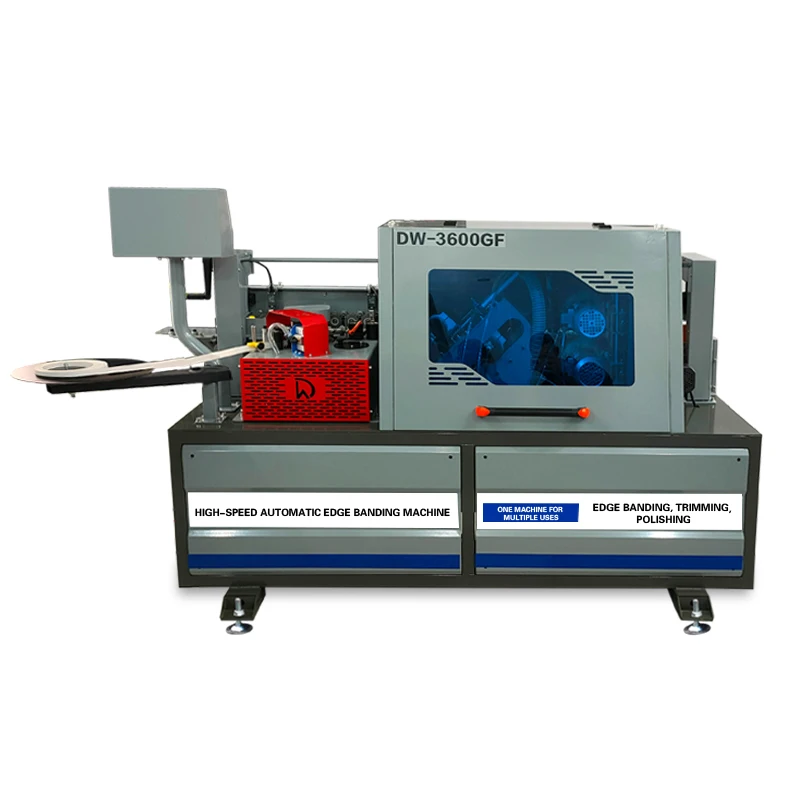

DW3600 Series Edge Banding Machine Pre Milling Wood Working Machine Pvc Edge Bander Price 7 Functions Edge Bander

Products Description woodworking Through Feed wood board scm edge bander 7 functions fully automatic edge banding machine Product Paramenters VOLTAGE :380V THREE-PHASE FOUR-WIREPRODUCT NUMBER: DW-3600GFEQUIPMENT SIZE:2200*650*1250mmTOTAL POWER:4.9KWEDGE BANDING TYPE: STRAIGHT EDGE BANDINGTOTAL WEIGHT: 320KGEDGE BAND HEIGHT :0-50MMEDGE BAND THICKNESS: 0.3-3MMMINIMUM LENGTH OF PLATE: 200MMEDGE BANDING POWER I SPEED: 160W0-14m/minTRANSMISSION POWER ISPEED: 180W0-14m/minTRIMMING POWERISPEED: 800W*2 24000r/minPOLISHING […]

Key Highlights

Performance

High-Precision Output

Certification

CE & ISO9001

Customization

OEM / ODM Ready

Export

Worldwide Shipping

Request a Quote WhatsApp

woodmachinebc@aliyun.com +86 156 6441 3539

Products Description

woodworking Through Feed wood board scm edge bander 7 functions fully automatic edge banding machine

Product Paramenters

VOLTAGE :380V THREE-PHASE FOUR-WIRE	PRODUCT NUMBER: DW-3600GF
EQUIPMENT SIZE:22006501250mm	TOTAL POWER:4.9KW
EDGE BANDING TYPE: STRAIGHT EDGE BANDING	TOTAL WEIGHT: 320KG
EDGE BAND HEIGHT :0-50MM	EDGE BAND THICKNESS: 0.3-3MM
MINIMUM LENGTH OF PLATE: 200MM
EDGE BANDING POWER I SPEED: 160W0-14m/min
TRANSMISSION POWER ISPEED: 180W0-14m/min
TRIMMING POWERISPEED: 800W*2 24000r/min
POLISHING POWER /SPEED: 400W*2
EQUIPMENT AIR PRESSURE: 0.4-0.6mpa
STANDARD FUNCTIONS: GLUING.TRIMMING.TRIMMING.FRONT AND REAR .SCRAPING.POLISHING .VACUUMING

Product Details

Details Images

Why Choose Us

Our company is a source enterprise specializing in the production and exportof woodworking machinery products. The main products are edge bandingmachine. slotting machine. woodworking saw table and other auxiliary products.Our products are widely sold in China and exported to Europe. North America.Southeast Asia. Russia and other countries and regions. and are wellreceived by customers.

FAQ

Q1.Are you a trade company or a manufacturer ?We are manufacturer in Dezhou city. Shandong province of China.

We can offer competitive price of machine with high quality.Q2:Can I choose the Plug?Yes.we have EU.USA.AU.UK plug for your country useQ3:Is it OK to print my logo on the product?Yes.Please inform us formally before our production and confirm the design firstly for the mass production.Q4.I do not know Chinese.will the operation panel in English or French or other?Yes.all our machine are with Chinese and English.If you want only English or Spanish or other.we also can customize to youQ5:It is my first time to purchase goods from china.how do i do? Do not worry.Bei chen has 10 years export experience to all over the world.also has professional sales team.We have exported to Russia. Pakistan. Algeria. Vietnam. Peru and many other countries.Q6:How to pack the machine? We use wooden box to packge the machine to protect them to be safe.Q7.What to do if l have any other specifications for the current?lf you have any different requirements.just contact us and we will meet you.Q8.lf I need a sample for pretest. do you sale sample for this inquiry ?Yes. we can sale sample for pretest. lf you need this service. please contact us and we will giveyou a quotation.Q9.Can you produce the products according to my own drawings?Yes. we can do OEM according to your requirement

Standard specifications are listed below. Custom configurations are available -- contact us for tailored solutions.

Parameter	Value
Product Name	DW3600 Series Edge Banding Machine Pre Milling Wood Working Machine Pvc Edge Bander Price 7 Functions Edge Bander
Category	Edge banding machine
Certification	CE, ISO9001
Voltage	220V/380V (Customizable)
Warranty	1 Year
After-Sales	Remote technical support, spare parts supply
OEM/ODM	Available -- logo, color, voltage, language
Delivery	Standard export packaging, worldwide shipping
MOQ	1 Unit
Lead Time	15-30 days (subject to order)

* Specifications may vary by model. Contact our team for exact technical data sheets.

Product Features

High-precision machining with ±0.1mm tolerance
Durable components for long service life
User-friendly operation panel
Low noise, energy-efficient motor
Quick blade/part change design
Safety guard and emergency stop
Smooth conveyor belt system
Stable performance under continuous operation
