Edge banding machine

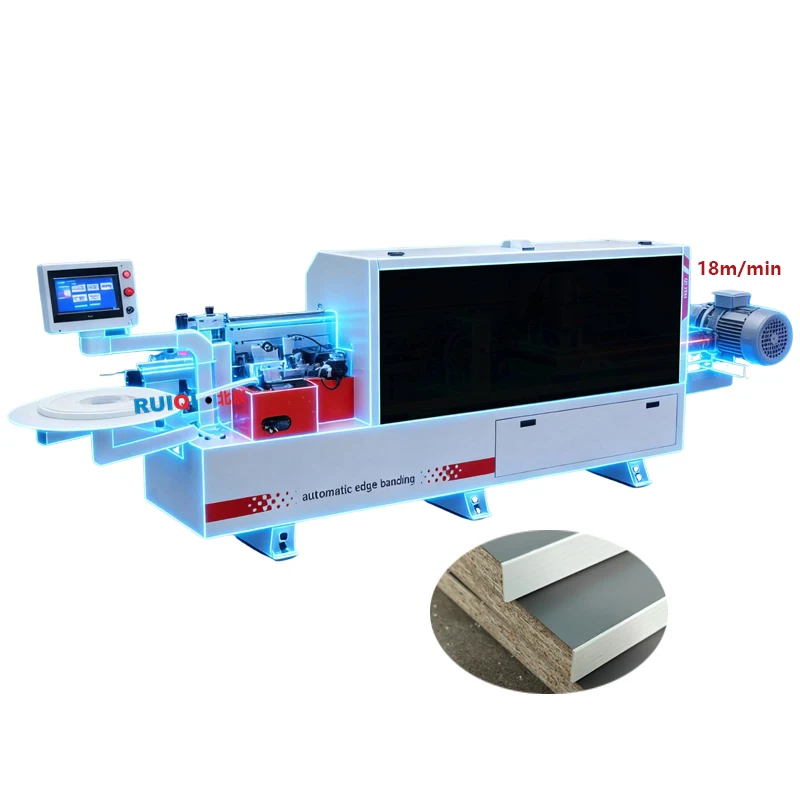

DW330 High Speed Edge Banding Machine Double Row Press Wheels Aluminum Beam Stable Pressing Continuous Panel Feed Speed 18m/min

Products Description New Upgrade DW330 Fully Automatic Edge Banding Machine Pre-Milling Arc Trimming Enlarged Glue Pot Capacity 1500W Large Transmission MotorFully automatic edge banding machine can automatically complete processes such as board conveying. gluing. edge banding.trimming.polishing. etc. It is efficient and stable. and can adapt to various materials of edge banding strips and boards.providing high-quality […]

Key Highlights

Performance

High-Precision Output

Certification

CE & ISO9001

Customization

OEM / ODM Ready

Export

Worldwide Shipping

Request a Quote WhatsApp

woodmachinebc@aliyun.com +86 156 6441 3539

Products Description

New Upgrade DW330 Fully Automatic Edge Banding Machine Pre-Milling Arc Trimming Enlarged Glue Pot Capacity 1500W Large Transmission Motor

Fully automatic edge banding machine can automatically complete processes such as board conveying. gluing. edge banding.
trimming.polishing. etc. It is efficient and stable. and can adapt to various materials of edge banding strips and boards.
providing high-quality and efficient edge banding solutions for industries such as furniture manufacturing.

Product Paramenters

DW-330 high speed edge banding machine parameters??/DIV>
Model	DW-330
Conveying Motor??/DIV>	1.5KW
Trimming Motor??/DIV>	0.55KW*2
Glue feeding Motor??/DIV>	0.37KW*2
Narrowest sealing plate width??/DIV>	120mm
Feeding speed??/DIV>	18M/min
Outline dimension??/DIV>	35071122cm
Package size??/DIV>	36072130CM 3.37CBM
End-to-end motor??/DIV>	0.37KW*2
Polishing Motor??/DIV>	0.37KW*2
Machining minimum size??/DIV>	Lengh 200 width 100 thickness 9mm
Machining maximum plate thickness??/DIV>	Height 50mm
Heating rod??/DIV>	380V 300W*4
Net Weight??/DIV>	750KG
Weight??/DIV>	800KG

Product Details

7-inch PLC control panel. compatible with multiple languages. and a push-button control box is also available as an option.

Digital display hand crank for manual adjustment of beam height

Double-row pressure rollers. aluminum profile pressure beams. stable pressure plates. capable of sealing narrowest plates up to 10cm wide.

With an enlarged cylinder and thickened cutter. it can cut 3mm thick edge banding tape.

Large-capacity glue pot. capable of continuously sealing large boards without glue. with stable work efficiency.

Large gluing shaft. single-sided gluing of the board. uniform gluing. no glue breakage on large boards. and no need for separate adjustment when using thin edge banding tape.

The glue volume adjustment device is simple and easy to operate.

Head-to-tail device

Contour trimming. alloy trimming knife. smooth and beautiful trimming.

Curved scraper with a contouring device is used to trim curved edges.

Enhanced polishing. industrial polishing motor. resulting in a smooth. residue-free polished surface.

1500W transmission motor with a 1:40 speed ratio enables a fast sealing speed of up to 18m/min.

Edge Banding Effect

Why Choose Us

Certifications

Company Profile

Our company is a source enterprise specializing in the production and exportof woodworking machinery products. The main products are edge bandingmachine. slotting machine. woodworking saw table and other auxiliary products.Our products are widely sold in China and exported to Europe. North America.Southeast Asia. Russia and other countries and regions. and are wellreceived by customers.

FAQ

Q1.Are you a trade company or a manufacturer ?We are manufacturer in Dezhou city. Shandong province of China.

We can offer competitive price of machine with high quality.Q2:Can I choose the Plug?Yes.we have EU.USA.AU.UK plug for your country useQ3:Is it OK to print my logo on the product?Yes.Please inform us formally before our production and confirm the design firstly for the mass production.Q4.I do not know Chinese.will the operation panel in English or French or other?Yes.all our machine are with Chinese and English.If you want only English or Spanish or other.we also can customize to youQ5:It is my first time to purchase goods from china.how do i do? Do not worry.Bei chen has 10 years export experience to all over the world.also has professional sales team.We have exported to Russia. Pakistan. Algeria. Vietnam. Peru and many other countries.Q6:How to pack the machine? We use wooden box to packge the machine to protect them to be safe.Q7.What to do if l have any other specifications for the current?lf you have any different requirements.just contact us and we will meet you.Q8.lf I need a sample for pretest. do you sale sample for this inquiry ?Yes. we can sale sample for pretest. lf you need this service. please contact us and we will giveyou a quotation.Q9.Can you produce the products according to my own drawings?Yes. we can do OEM according to your requirement

Standard specifications are listed below. Custom configurations are available -- contact us for tailored solutions.

Parameter	Value
Product Name	DW330 High Speed Edge Banding Machine Double Row Press Wheels Aluminum Beam Stable Pressing Continuous Panel Feed Speed 18m/min
Category	Edge banding machine
Certification	CE, ISO9001
Voltage	220V/380V (Customizable)
Warranty	1 Year
After-Sales	Remote technical support, spare parts supply
OEM/ODM	Available -- logo, color, voltage, language
Delivery	Standard export packaging, worldwide shipping
MOQ	1 Unit
Lead Time	15-30 days (subject to order)

* Specifications may vary by model. Contact our team for exact technical data sheets.

Product Features

High-precision machining with ±0.1mm tolerance
Durable components for long service life
User-friendly operation panel
Low noise, energy-efficient motor
Quick blade/part change design
Safety guard and emergency stop
Smooth conveyor belt system
Stable performance under continuous operation

OEM / ODM Service

Custom logo & brand labeling
Voltage configuration (220V/380V/440V)
Multilingual control panels (EN/ES/FR/AR)
Color & appearance customization
Custom packaging & export crating
Private label / white-label service
Technical documentation in your language
Dedicated account manager support

Full After-Sales Support Included

Remote technical guidance · Warranty coverage · Spare parts supply · Operation training · EN/ES service teams
