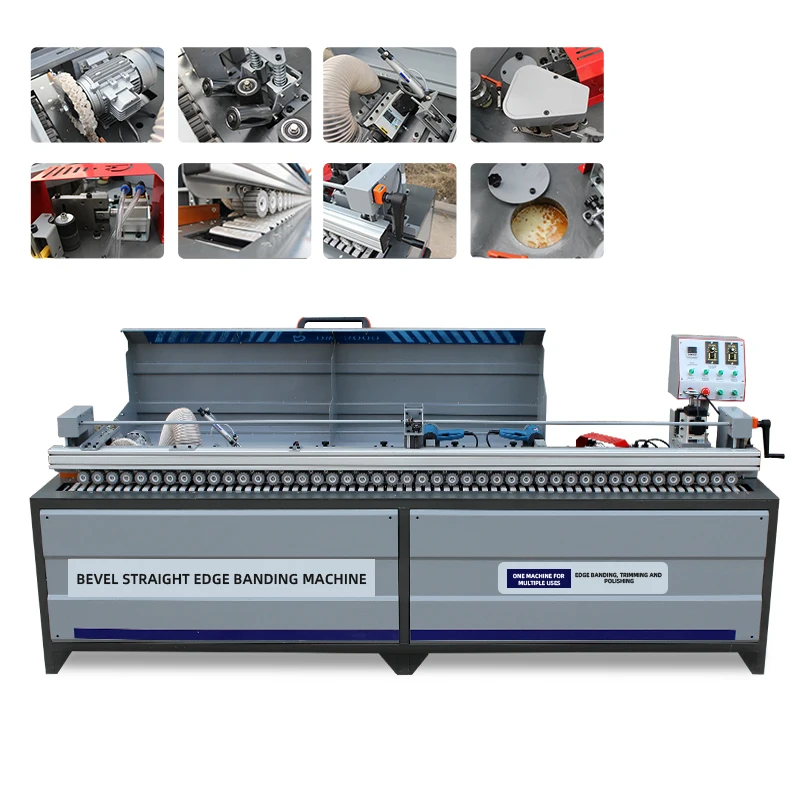

DW3000 Automatic Straight Bevel Edge Banding Machine 45 Degree Bevel Slant Edge for Wood Panel PVC ABS Sealing
Edge banding machine
CE Certified
DW3000 Automatic Straight Bevel Edge Banding Machine 45 Degree Bevel Slant Edge for Wood Panel PVC ABS Sealing thumbnail
DW3000 Automatic Straight Bevel Edge Banding Machine 45 Degree Bevel Slant Edge for Wood Panel PVC ABS Sealing view 2
DW3000 Automatic Straight Bevel Edge Banding Machine 45 Degree Bevel Slant Edge for Wood Panel PVC ABS Sealing view 3
DW3000 Automatic Straight Bevel Edge Banding Machine 45 Degree Bevel Slant Edge for Wood Panel PVC ABS Sealing view 4
CE & ISO9001
100+ Countries
Full After-Sales
Edge banding machine

DW3000 Automatic Straight Bevel Edge Banding Machine 45 Degree Bevel Slant Edge for Wood Panel PVC ABS Sealing

Products Description DW3000 Fully automatic 45 degree oblique straight edge panel furniture edge banding machineThe Straight Bevel Edge banding machine with Large-scale gluing bearing. edge band slotting device. slotting height can be adjusted. edge banding is more compliant. double cylinder feeding belt is more stable and not shaking. double heat gun design. heating edge banding […]

Key Highlights

Performance
High-Precision Output
Certification
CE & ISO9001
Customization
OEM / ODM Ready
Export
Worldwide Shipping
Request a Quote WhatsApp
woodmachinebc@aliyun.com +86 156 6441 3539
Products Description
DW3000 Fully automatic 45 degree oblique straight edge panel furniture edge banding machine
The Straight Bevel Edge banding machine with Large-scale gluing bearing. edge band slotting device. slotting height can be adjusted. edge banding is more compliant. double cylinder feeding belt is more stable and not shaking. double heat gun design. heating edge banding is more obedient. 8 groups The angle of the oblique pressure wheel can be adjusted arbitrarily from 30 to 90. The 800W silent trimming motor. the industrial-grade polishing motor and the vacuuming motor are polished smoothly and cleanly. The DW3000 trimming motor is replaced with a spindle trimming motor. with a total of 3 spindle motors. With a flexible edge scraper to clean the glue line. the finish is better
Product Paramenters
Model
DW3000
Total power
11KW
Standard features
Plate milling. 30-90 degree edge banding. trimming. trimming. scraping and polishing. high-power vacuuming
Voltage
380V/415V
Minimum length of sheet
30CM
Minimum width of sheet
15CM
Edge banding height
0-50MM
Edge banding thickness
0.3-3MM
Pre-milled motor
2.2KW
Heating power
2.2KW*2
Edge power/speed
160W 0-12M/min
Air source pressure
0.5-0.7Mpa
Transmission power/speed
180W 0-12M/min
Glue pot capacity
4000ml
Trimming power/speed
2.2KW*2
Vacuum power
550W
Polishing power/speed
0.4KW*2
Product Size
299*65*130CM
Product weight
430KG
Package Size
312*74*115CM
Both oblique and straight. edge trimming and polishing. double hot air design. feeding auxiliary slide. 8 sets of oblique pressure
wheels. automatic alignment. 45-degree pre-milling of the plate. edge banding with slots
Why Choose Us
Our company is a source enterprise specializing in the production and exportof woodworking machinery products. The main products are edge bandingmachine. slotting machine. woodworking saw table and other auxiliary products.Our products are widely sold in China and exported to Europe. North America.Southeast Asia. Russia and other countries and regions. and are wellreceived by customers.
FAQ
Q1.Are you a trade company or a manufacturer ?We are manufacturer in Dezhou city. Shandong province of China.
We can offer competitive price of machine with high quality.Q2:Can I choose the Plug?Yes.we have EU.USA.AU.UK plug for your country useQ3:Is it OK to print my logo on the product?Yes.Please inform us formally before our production and confirm the design firstly for the mass production.Q4.I do not know Chinese.will the operation panel in English or French or other?Yes.all our machine are with Chinese and English.If you want only English or Spanish or other.we also can customize to youQ5:It is my first time to purchase goods from china.how do i do? Do not worry.Bei chen has 10 years export experience to all over the world.also has professional sales team.We have exported to Russia. Pakistan. Algeria. Vietnam. Peru and many other countries.Q6:How to pack the machine? We use wooden box to packge the machine to protect them to be safe.Q7.What to do if l have any other specifications for the current?lf you have any different requirements.just contact us and we will meet you.Q8.lf I need a sample for pretest. do you sale sample for this inquiry ?Yes. we can sale sample for pretest. lf you need this service. please contact us and we will giveyou a quotation.Q9.Can you produce the products according to my own drawings?Yes. we can do OEM according to your requirement

Standard specifications are listed below. Custom configurations are available -- contact us for tailored solutions.

Parameter Value
Product Name DW3000 Automatic Straight Bevel Edge Banding Machine 45 Degree Bevel Slant Edge for Wood Panel PVC ABS Sealing
Category Edge banding machine
Certification CE, ISO9001
Voltage 220V/380V (Customizable)
Warranty 1 Year
After-Sales Remote technical support, spare parts supply
OEM/ODM Available -- logo, color, voltage, language
Delivery Standard export packaging, worldwide shipping
MOQ 1 Unit
Lead Time 15-30 days (subject to order)

* Specifications may vary by model. Contact our team for exact technical data sheets.

Product Features

  • High-precision machining with ±0.1mm tolerance
  • Durable components for long service life
  • User-friendly operation panel
  • Low noise, energy-efficient motor
  • Quick blade/part change design
  • Safety guard and emergency stop
  • Smooth conveyor belt system
  • Stable performance under continuous operation

OEM / ODM Service

  • Custom logo & brand labeling
  • Voltage configuration (220V/380V/440V)
  • Multilingual control panels (EN/ES/FR/AR)
  • Color & appearance customization
  • Custom packaging & export crating
  • Private label / white-label service
  • Technical documentation in your language
  • Dedicated account manager support
Full After-Sales Support Included
Remote technical guidance · Warranty coverage · Spare parts supply · Operation training · EN/ES service teams
