China High Quality Oblique Straight Board Edge Banding Machine 45 Degree Edge Manufacturing Machines for Small Business

Wood Based Panels Machinery

CE Certified

CE & ISO9001

100+ Countries

Full After-Sales

Wood Based Panels Machinery Woodworking Machinery

China High Quality Oblique Straight Board Edge Banding Machine 45 Degree Edge Manufacturing Machines for Small Business

ZDS-3600 Full Auto Bevel-Straight Edge Banding Machine Use for Bevel-straight Edge.achieve perfect bevel-straight banding effect at one time. Function:Function:*Milling Shape*Edge strip slotting*Hot air assisted. secondary heating*Head and tail cutting*Fine trimming*Scraping*Buffing Product Parameters Edge speed0-12m/minEdge banding sheet thickness18-45mmVoltage380vPower8.9kwWorking pressure0.5-0.7MpaGlue pot capacity4000mlBevel Angle30°-90°Edge motor0.12kwGlue pot heating2kwOven lamp heating2kw*2Slotting motor65wTrimming motor2.2kw*2Milling motor2.2kwPolishing Motor0.37kw*2Size3320*650*1180mmWeight450kgFunctionStraight edge– Beveled straight edge– Pressing/gluing–Pre-milling–Preheating– […]

Key Highlights

Performance

High-Precision Output

Certification

CE & ISO9001

Customization

OEM / ODM Ready

Export

Worldwide Shipping

Request a Quote WhatsApp

woodmachinebc@aliyun.com +86 156 6441 3539

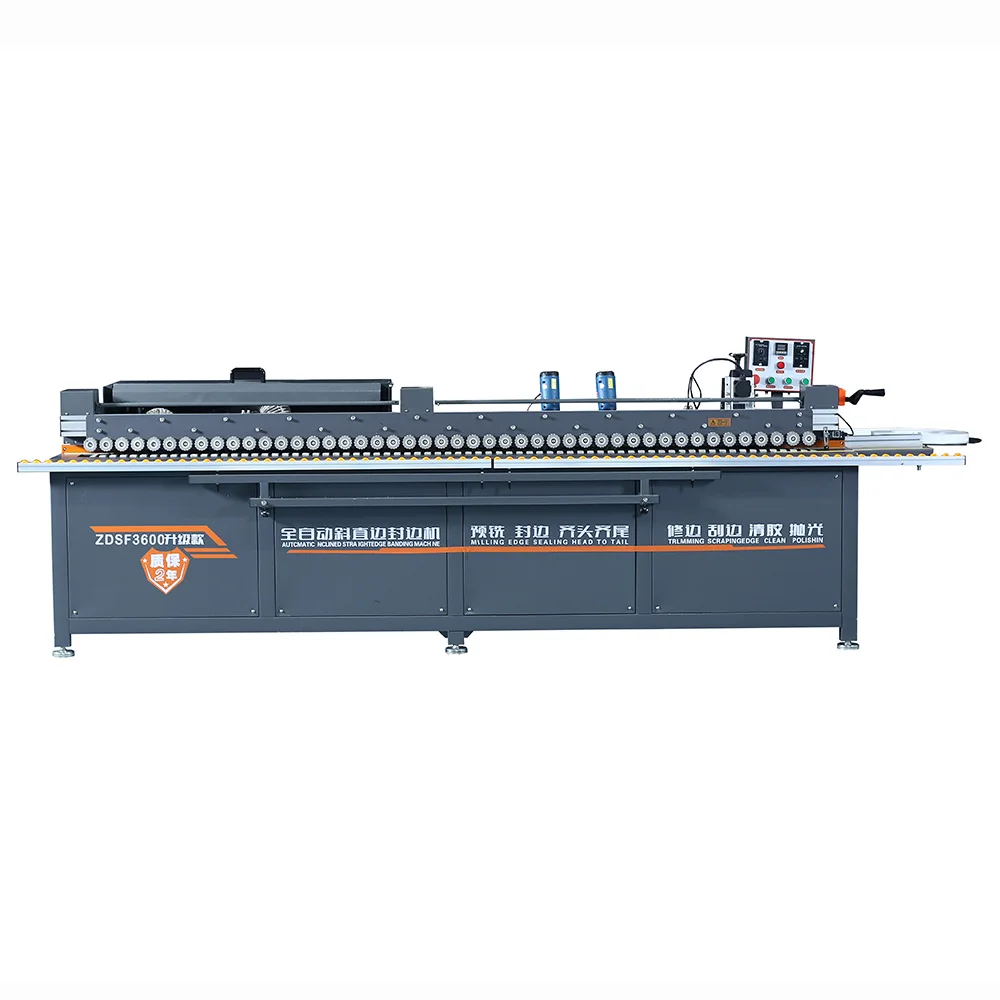

ZDS-3600 Full Auto Bevel-Straight Edge Banding Machine

Use for Bevel-straight Edge.achieve perfect bevel-straight banding effect at one time.

Function:

Function:
*Milling Shape
*Edge strip slotting
*Hot air assisted. secondary heating
*Head and tail cutting
*Fine trimming
*Scraping
*Buffing

Product Parameters

Edge speed	0-12m/min	Edge banding sheet thickness	18-45mm
Voltage	380v	Power	8.9kw
Working pressure	0.5-0.7Mpa	Glue pot capacity	4000ml
Bevel Angle	30°-90°	Edge motor	0.12kw
Glue pot heating	2kw	Oven lamp heating	2kw*2
Slotting motor	65w	Trimming motor	2.2kw*2
Milling motor	2.2kw	Polishing Motor	0.37kw*2
Size	33206501180mm	Weight	450kg
Function	Straight edge-- Beveled straight edge-- Pressing/gluing--Pre-milling--Preheating-- edge trimming--edge scraping--clear glue--polishing

Product details

PLC control. panel operation. easy to learn.

One-piece aluminum alloy lift and pressure beam. stable and durable.

Pressure beam height adjustment device. digital display. suitable for plates of different thickness.

Beveled edge milling motor. powerful power. PLC control. easy tool change.

Large-capacity glue pot assembly reduces the number of glue additions.

The edge banding is pre-grooved for better results.

Chrome-plated pressure roller. easy to adjust the pressure. can achieve different angles of edge banding.

Two high-speed trimming motors. matched with 4-edged alloy cutter heads. form arc edges.

Spray glue removal device to remove excess glue spilled during glue application.

Large-diameter suction tube. better dust collection effect.

Dual motors polish up and down. and the finished product has better effect.

Company Profile

_{ABOUT US}

Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a C N C machinery company in Lunjiao. Foshan City.Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. C N C nesting machine. C N C wood router. C N C six-sided drilling and milling processing center. C N C side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries.In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.

Package And Shipping

FAQ

Q1: How to make an order?

A1:You can order online . Or Email us your details. and we will contact you immediately and help you proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?

A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?

A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?

A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?

A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?

A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Standard specifications are listed below. Custom configurations are available -- contact us for tailored solutions.

Parameter	Value
Product Name	China High Quality Oblique Straight Board Edge Banding Machine 45 Degree Edge Manufacturing Machines for Small Business
Category	Wood Based Panels Machinery, Woodworking Machinery
Certification	CE, ISO9001
Voltage	220V/380V (Customizable)
Warranty	1 Year
After-Sales	Remote technical support, spare parts supply
OEM/ODM	Available -- logo, color, voltage, language
Delivery	Standard export packaging, worldwide shipping
MOQ	1 Unit
Lead Time	15-30 days (subject to order)

* Specifications may vary by model. Contact our team for exact technical data sheets.

Product Features

High-precision machining with ±0.1mm tolerance
Durable components for long service life
User-friendly operation panel
Low noise, energy-efficient motor
Quick blade/part change design
Safety guard and emergency stop
Smooth conveyor belt system
Stable performance under continuous operation

OEM / ODM Service

Custom logo & brand labeling
Voltage configuration (220V/380V/440V)
Multilingual control panels (EN/ES/FR/AR)
Color & appearance customization
Custom packaging & export crating
Private label / white-label service
Technical documentation in your language
Dedicated account manager support
