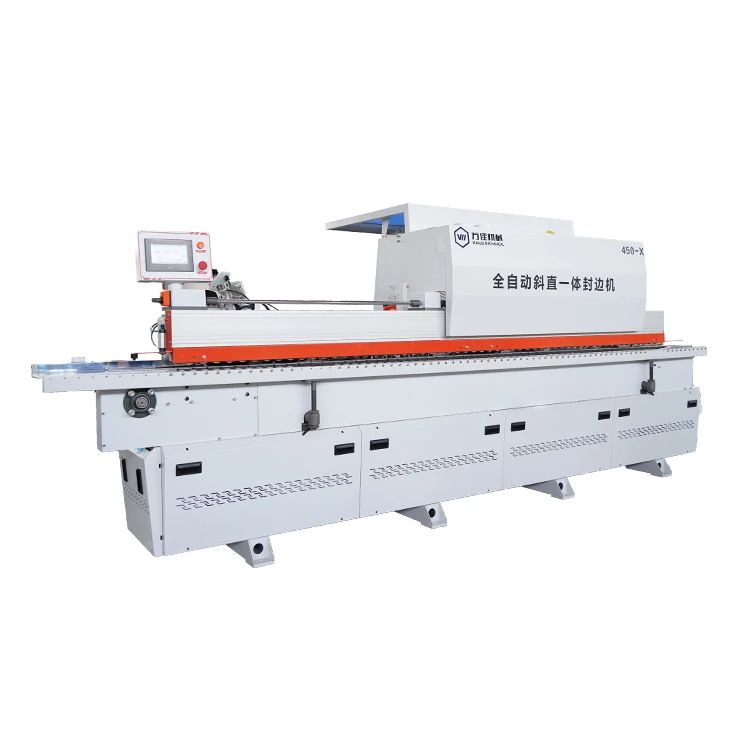

Straight Automatic Curve Edge Banding and Cutting Machine Professional Pvc Edge Bander Fully Automatic With Pre Milling

Wood Based Panels Machinery

CE Certified

CE & ISO9001

100+ Countries

Full After-Sales

Wood Based Panels Machinery Woodworking Machinery

Straight Automatic Curve Edge Banding and Cutting Machine Professional Pvc Edge Bander Fully Automatic With Pre Milling

Products Disply Product Paramenters Product size435x92x165cmTotal power 17.5KwPower supply voltage380V/three-phase five-wire 50HzConveying motor 380V22Kw (frequency converter)Air source pressure 0.6mpa-0.8mpaLifting motor380V025Kw (inverter)External suction portdiameter 100mmPolishing motor380V370W (2)Touch screenXinjie industrial touch screenSelection motorA 380V 4kwInverterXinjie Industrial InverterMilling motor B380V35KwGlue pot use temperature150-170??/DIV>Edge strip width28mmThe thickness of the edge banding1.2mm (related to the material of the edge banding)Air storage tank volume5LTrimming […]

Key Highlights

Performance

High-Precision Output

Certification

CE & ISO9001

Customization

OEM / ODM Ready

Export

Worldwide Shipping

Request a Quote WhatsApp

woodmachinebc@aliyun.com +86 156 6441 3539

Products Disply

Product Paramenters

Product size	435x92x165cm
Total power	17.5Kw
Power supply voltage	380V/three-phase five-wire 50Hz
Conveying motor	380V22Kw (frequency converter)
Air source pressure	0.6mpa-0.8mpa
Lifting motor	380V025Kw (inverter)
External suction port	diameter 100mm
Polishing motor	380V370W (2)
Touch screen	Xinjie industrial touch screen
Selection motor	A 380V 4kw
Inverter	Xinjie Industrial Inverter
Milling motor B	380V35Kw
Glue pot use temperature	150-170??/DIV>
Edge strip width	28mm
The thickness of the edge banding	1.2mm (related to the material of the edge banding)
Air storage tank volume	5L
Trimming motor	380V0.75Kwx2
Qi head motor	380V0.37Kwx2
Sheet width	>100mm
Sheet length	>250mm
Type of edge banding	PVC
Glue pot heating	1.2KW
Heat gun	2KW
Edge motor	380V0.18KW (inverter)
Polishing motor	380V0.37KWX2
Slotted motor	220V0.8KW
Edge banding sheet thickness	18/22/25MM
Edge speed	0-12M/MIN (variable speed) (inclined straight edge)
Edge strip width	20-50MM
Glue pot capacity	2000ML

Company Profile

_{ABOUT US}

Zhengzhou The Right Time Import And Export Co.. Ltd. designated procurement channels for China Construction Overseas Projects. and is mainly involved in woodworking machinery. construction machinery. machinery accessories. engineering materials and other products. We invest and hold a portable woodworking company in Shandong province and a C N C machinery company in Lunjiao. Foshan City.Combining advanced woodworking production technology and experience at home and abroad. in order to better serve woodworking machinery and support the woodworking industry. we have successively developed. designed and manufactured various type of portable and sliding table saws. the whole house customization straight and curved edge bander. trimming machine. C N C nesting machine. C N C wood router. C N C six-sided drilling and milling processing center. C N C side holes drilling machine. industrial automatic edge banding machine. hinge hole drilling machine. panel saws and other woodworking best-selling products. The products are exported to Europe. America. Southeast Asia. Kazakhstan. Vietnam. India. Brazil. Peru. and other regions and countries.In line with the company philosophy of customer first and pursuit of excellence. the company has brought together a team of technical experts specializing in machine tool design and manufacturing and an import and export service team with more than ten years of rich experience. with good professional quality. We can provide customers with good pre-sale and after-sale technical advice and import and export one-stop service.

Package And Shipping

FAQ

Q1: How to make an order?

A1:You can order online . Or Email us your details. and we will contact you immediately and help you proceed with the orders.

Q2: Can you offer special discounts to the wholesaler or we make big quantity?

A2:Yes. we will give you best support according to your quantity.

Q3: What is your delivery time?

A3:Normally. we can finish one order at about 25-30days. but the exact time depends on different styles and different quantities you order.

Q4: Can you arrange the shipment by door to door?

A4:We can offer door to door service both by sea and by air. which can save your time and money. Also. we have cooperated forwarder in some countries and can arrange the customs clearance for you.

Q5: Do I have to assemble all items by myself or by my customer himself?

A5:Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts). and others need to be assembled. But it is so easy to assemble with the user manual or video teaching.

Q6: What's your warranty?

A6:We normally will provide one years warranties. If the product is caused by factory mistakes. We will give you replacement for the spare parts. If it was damaged during the shipping or other reasons. we will provide the best solutions for you.

Q7:What payment do you accept?
A7:Normally we can provide TT. LC. PAYPAL. ESCROW. WESTERN UNION ect. Any other ideas. please contact us for better support.

Standard specifications are listed below. Custom configurations are available -- contact us for tailored solutions.

Parameter	Value
Product Name	Straight Automatic Curve Edge Banding and Cutting Machine Professional Pvc Edge Bander Fully Automatic With Pre Milling
Category	Wood Based Panels Machinery, Woodworking Machinery
Certification	CE, ISO9001
Voltage	220V/380V (Customizable)
Warranty	1 Year
After-Sales	Remote technical support, spare parts supply
OEM/ODM	Available -- logo, color, voltage, language
Delivery	Standard export packaging, worldwide shipping
MOQ	1 Unit
Lead Time	15-30 days (subject to order)

* Specifications may vary by model. Contact our team for exact technical data sheets.

Product Features

High-precision machining with ±0.1mm tolerance
Durable components for long service life
User-friendly operation panel
Low noise, energy-efficient motor
Quick blade/part change design
Safety guard and emergency stop
Smooth conveyor belt system
Stable performance under continuous operation

OEM / ODM Service

Custom logo & brand labeling
Voltage configuration (220V/380V/440V)
Multilingual control panels (EN/ES/FR/AR)
Color & appearance customization
Custom packaging & export crating
Private label / white-label service
Technical documentation in your language
Dedicated account manager support
